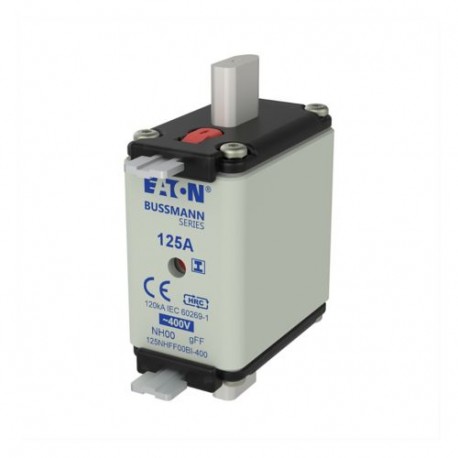

125Amp 400V AC GFF 00 NH FUSE 125NHFF00BI-400 EATON ELECTRIC Fuse-link, LV, 125 A, AC 400 V, NH00, gFF, IEC,..
125Amp 400V AC GFF 00 NH FUSE
125NHFF00BI-400
125NHFF00BI-400
EATON - MOELLER
3 Pcs.
Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Electrical distribution systems utilize the Eaton Moeller 125Amp 400V AC GFF 00 NH FUSE to interrupt dangerous overcurrents and safeguard vital circuit wiring from thermal damage. These protective devices are commonly integrated into industrial panelboards and switchboards to maintain continuous operational safety.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Fuse construction type according to IEC 60269 (EF015865): NH00
- Voltage type (EF000187): AC
- Rated current (EF000227): 125 A
- Rated voltage AC (EF007682): 400 V
- Rated switching capacity AC (EF017698): 120 kA
- Type of fuse status indicator (EF004473): Combination fuse status indicator
- Insulated metal gripping lugs (IMGL) (EF012538): Yes
- Power loss at rated current (EF012389): 11 W
More info
▲General specifications
RoHS Compliant
IEC 60269-2
DIN 43620
Electrical data
Product specification
Accessories
TD00-D Tripe pole NH Fuse base
Microswitch 170H0236
