View larger
Images are for illustrative purposes only. Please refer to data sheet for details

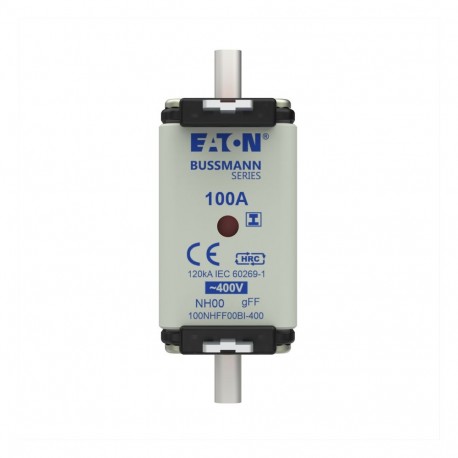

100Amp 400V AC GFF 00 NH FUSE 100NHFF00BI-400 EATON ELECTRIC Fuse-link, LV, 100 A, AC 400 V, NH00, gFF, IEC,..
100Amp 400V AC GFF 00 NH FUSE
100NHFF00BI-400
100NHFF00BI-400
EATON - MOELLER
3 Pcs.
Fuse-link, LV, 100 A, AC 400 V, NH00, gFF, IEC, dual indicator, insulated gripping lugs
100Amp 400V AC GFF 00 NH FUSE
Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
100NHFF00BI-400
EAN
5027590427999
Product Length/Depth
79 mm
Product Height
57 mm
Product Width
30 mm
Product Weight
166 g
Compliances
CE Marked
RoHS Compliant
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620
IEC 60269-2
DIN 43620
Electrical data
Amperage Rating
100 A
Voltage rating
400 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz
Product specification
Fuse size
NH02
Insulated metal gripping lugs (IMGL)
Yes
Accessories
Suitable for
Microswitch BVL50
| Feature Name | Feature Value |
|---|---|
| Fuse construction type according to IEC 60269 (EF015865) | NH00 |
| Voltage type (EF000187) | AC |
| Rated current (EF000227) | 100 A |
| Rated voltage AC (EF007682) | 400 V |
| Rated switching capacity AC (EF017698) | 120 kA |
| Utilization category according to IEC 60269 (EF002572) | gG (cable protection/equipment protection) |
| Type of fuse status indicator (EF004473) | Combination fuse status indicator |
| Insulated metal gripping lugs (IMGL) (EF012538) | Yes |
| Power loss at rated current (EF012389) | 9 W |
