View larger
Images are for illustrative purposes only. Please refer to data sheet for details

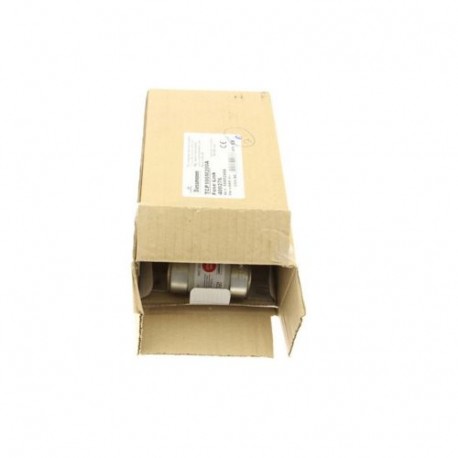

100M200 AMP 660V AC FUSE TCP100M200A TCP100M200 EATON ELECTRIC Fuse-link, low voltage, AC 660 V, DC 460 V, B..
100M200 AMP 660V AC FUSE
TCP100M200A
TCP100M200
EATON - MOELLER
10 Pcs.
Fuse-link, low voltage, AC 660 V, DC 460 V, BS88/A4, 26 x 110 mm, gM, BS
100M200 AMP 660V AC FUSE
Fuse, Fuse-link, low voltage, AC 660 V, DC 460 V, BS88/A4, 26 x 110 mm, gM, BS, offset bolted tags (slotted), motor-rated, general industrial applications, BS88-2, IEC 60269-2, Breaking Capacity 80 kA, Optional accessories fuse-holder RS100
Automation > HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Bussmann series low voltage british standard fuse
Catalog Number
TCP100M200A
EAN
5027590513401
UPC
051712485135
Product Length/Depth
111 mm
Product Height
34 mm
Product Width
34 mm
Product Weight
197.7 g
Compliances
Not Applicable
Certifications
IEC Rated
Electrical data
Amperage Rating
100 A
Voltage rating
660 V
Voltage type
AC/DC
Breaking capacity
80 kA
Class
Class gM
Compatible fuse holder
Suitable for
RS100 Red spot fuse holder
Product specifications
Fuse type
TCP
Fitted with:
Offset bolted tags
Construction
BS88/A4
| Feature Name | Feature Value |
|---|---|
| Fuse system according to IEC 60269 (EF017676) | Fuse system E |
| Fuse construction type according to IEC 60269 (EF015865) | A4 |
| Type of current (EF000143) | AC/DC |
| Rated voltage AC (EF007682) | 660 V |
| Rated voltage DC (EF012281) | 460 V |
| Rated current (EF000227) | 100 A |
| Utilization category according to IEC 60269 (EF002572) | gM (motor protection) |
| Breaking capacity (EF005617) | 80 kA |
| Colour code (EF000931) | None |
| Type of fuse status indicator (EF004473) | None |
| Mounting holes (EF021553) | M8 |
| Centre-to-centre distance of connections (EF021151) | 93.7 mm |
