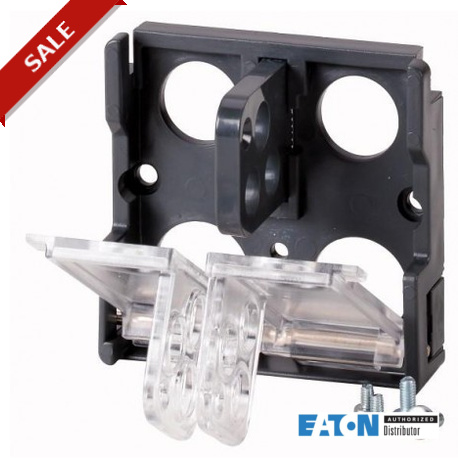

EATON - MOELLER IZMX-PLPC16-P IZMX-PLPC16-P 156649 EATON ELECTRIC Locking facilities ON-OFF, plastic View larger
Images are for illustrative purposes only. Please refer to data sheet for details

IZMX-PLPC16-P 156649 EATON ELECTRIC Locking facilities ON-OFF, plastic

IZMX-PLPC16-P

156649

EATON - MOELLER

1 Pcs.

Locking facilities ON-OFF, plastic Lockable front cover

Automation > Accessories/spare parts for low-voltage switch technology
Circuit Breakers IZM

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller IZMX-PLPC16-P 156649 Eaton Electric locking facilities on-off, plastic secures industrial circuit breakers in predetermined open or closed configurations to support lock-out/tag-out safety protocols. These mechanical locking devices are deployed extensively in electrical distribution networks to protect service personnel during equipment maintenance.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of accessory/spare part (EF000215): Mechanical locking
  • Accessory (EF013236): No
  • Spare part (EF013237): No

More info

▲
Delivery programme
Product range
Accessories
Accessories
Interlocks
Accessories
Locking ON/OFF buttons
The circuit-breaker's ON/OFF buttons can be locked together by using the interlock. It is also possible to lock only the ON or the OFF button by using a padlock.
This means that it will no longer be possible to actuate the circuit-breaker locally.
The optional remote switching mechanism that uses an ON/OFF coil will not be interlocked
P = Insulated material
For use with
IZMX16…
INX16…
ON-OFF
Plastic
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification
Operating ambient temperature min.
°C -25
Operating ambient temperature max.
°C 70
Technical data ETIM 6.0
Low-voltage industrial components (EG000017) / Accessories for low-voltage switch technology (EC002498)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Low-voltage switch technology (accessories) / Component for low-voltage switch technology (accessories) ([email protected] [AKN570010])
Type of accessory
Mechanical locking
