View larger
Images are for illustrative purposes only. Please refer to data sheet for details

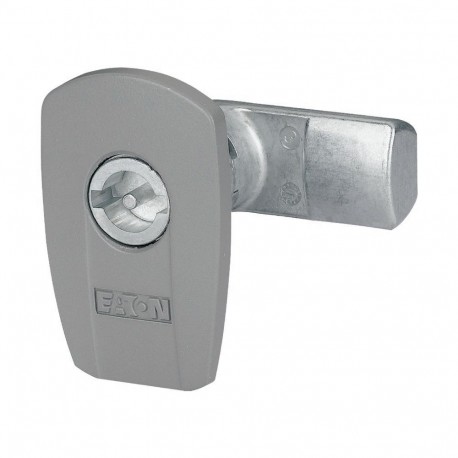

LC-DBIT5-CS 133103 Y7-133103 EATON ELECTRIC Lock, +SPD insert, 5mm double ward key
LC-DBIT5-CS
133103
Y7-133103
EATON - MOELLER
1 Pcs.
Lock, +SPD insert, 5mm double ward key
LC-DBIT5-CS
Eaton xEffect CS LV systems Switch- & Controlgear Enclosure. Lock, +SPD insert, 5mm double ward key
Universal latches for, CS wall housing, among other things, 5mm double ward key, lock label made from high-grade, impact-resistant pressure-cast zinc, metal lock and latches, metal lock nut, notched, compatible with standard latches, for standard door cut-outs 22.5x20.4mm, powder-spray painted dusty grey RAL 7037, please order key separately
Automation > Lock system for switchgear cabinet systems
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEffect CS locking system
Catalog Number
133103
Model Code
LC-DBIT5-CS
EAN
4015081299669
Product Length/Depth
39 mm
Product Height
55 mm
Product Width
35 mm
Product Weight
0.129 kg
Compliances
RoHS conform
Delivery program
Type
General switchboard accessory
Accessory/spare part type
Closing and locking systems
Universal locks
Universal locks
Technical data - mechanical
Closure type
Double bit
Surface finishing
Dusty gray RAL 7037, with powder coating
Handle type
Other
Additional information
Fitted with:
5 mm double ward key
Special features
Used with
For standardized door cut-outs 22.5 × 20.4 mm
| Feature Name | Feature Value |
|---|---|
| Type of handle (EF001165) | Other |
| Toggle (EF001164) | No |
| Padlock locking (EF001163) | No |
| Espagnolette locking (3-point locking) (EF009216) | No |
| Type of closure (EF004462) | Double bit |
