> EATON - MOELLER > Enclosures > 102467

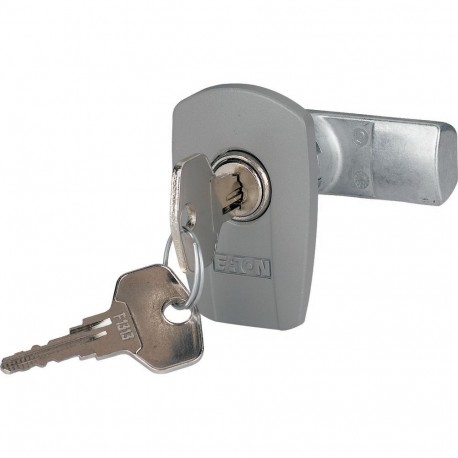

EATON - MOELLER BPZ-LOCK BPZ-LOCK 102467 Y7-102467 EATON ELECTRIC Lock, simultaneous locking with 2 keys, grey View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BPZ-LOCK 102467 Y7-102467 EATON ELECTRIC Lock, simultaneous locking with 2 keys, grey

BPZ-LOCK

102467

Y7-102467

EATON - MOELLER

1 Pcs.

Lock, simultaneous locking with 2 keys, grey BPZ-LOCK Eaton xEnergy Basic LV systems Low voltage switchgear. Lock, simultaneous locking with 2 keys, grey Interlocking, lock, BPZ-LOCK, common locking, lock cylinder, incl. 2 keys, for cam lock and double-bit lock for all IP30 and IP54 enclosures, gray

Automation > Lock system for switchgear cabinet systems
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton xEnergy Basic other accessory
Catalog Number
102467
Model Code
BPZ-LOCK
EAN
4015081023554
Product Length/Depth
100 mm
Product Height
50 mm
Product Width
170 mm
Product Weight
0.1 kg
Compliances
RoHS conform

Delivery program

Type
Additional equipment

Technical data - mechanical

Closure type
Cylinder
Mounting method
Flush mounting
Surface mounting
Floor standing distribution board
Handle type
Key

Additional information

Functions
Espagnolette locking (3-point locking)
Additional equipment

ETIM for 102467 Power distribution systems (EC000327)
Feature Name Feature Value
Type of handle (EF001165) Key
Toggle (EF001164) No
Padlock locking (EF001163) No
Espagnolette locking (3-point locking) (EF009216) Yes
Type of closure (EF004462) Cylinder

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
