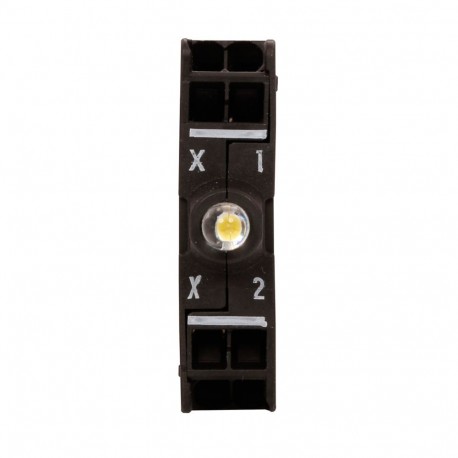

EATON - MOELLER M22-CLED230-B M22-CLED230-B 218063 Y7-218063 EATON ELECTRIC Light element, LED, blue, front mount, 85-264VAC, spring clamp.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-CLED230-B 218063 Y7-218063 EATON ELECTRIC Light element, LED, blue, front mount, 85-264VAC, spring clamp..

M22-CLED230-B

218063

Y7-218063

EATON - MOELLER

20 Pcs.

Light element, LED, blue, front mount, 85-264VAC, spring clamp connection M22-CLED230-B Eaton Moeller® series M22 Light element, LED, blue, front mount, 85-264VAC, spring clamp connection LED element, Fixing: Front fixing, Connection technique: Cage Clamp, Description: Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany, Rated operational voltage: Ue= 85 - 264 V AC, 50/60 Hz V, Rated operational current: Ie= 5 - 15 mA, Power consumption: Pmax.= 0.33 W, At 230 V, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1

Automation > Lamp holder block for control circuit devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory LED
Catalog Number
218063
Model Code
M22-CLED230-B
EAN
4015082180638
Product Length/Depth
39 mm
Product Height
39 mm
Product Width
10 mm
Product Weight
0.01 kg
Compliances
Bureau Veritas
GoST-R
CE Marked
Certifications
CSA Certified
CCC Marked
Lloyd's Register Certified
CSA-C22.2 No. 14-05
CSA Class No.: 3211-03
UL
CSA
IEC/EN 60947-5
UL File No.: E29184
CE
CSA File No.: 012528
CSA-C22.2 No. 94-91
IEC 60947-5-1
UL 508
UL Category Control No.: NKCR
Catalog Notes
Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany

ETIM for 218063 Low-voltage industrial controls and switchgear (EC000204)
Feature Name Feature Value
Transformer integrated (EF001358) No
With integrated voltage decreasing resistor (EF001399) No
With light source (EF005905) Yes
With integrated diode (EF001400) Yes
Lamp holder (EF000048) None
Rated voltage Ue at AC 50 Hz (EF007029) 85 V
Rated voltage Ue at AC 60 Hz (EF007030) 85 V
Rated voltage Ue at DC (EF007031) 0 V
Voltage type for actuating (EF008242) AC
Lamp type (EF002423) LED
Connection type auxiliary circuit (EF006820) Spring clamp connection
Colour light source (EF001402) Blue
Type of fastening (EF002442) Front fastening

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
