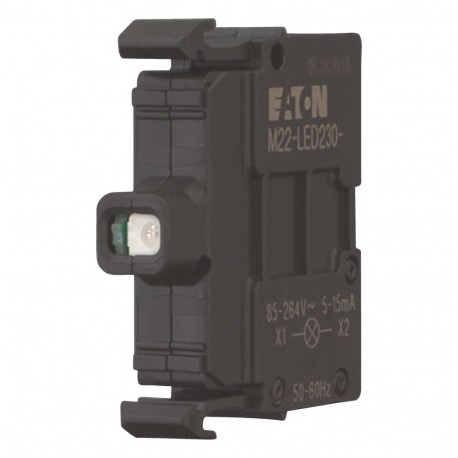

EATON - MOELLER M22-LED230-B M22-LED230-B 218059 Y7-218059 EATON ELECTRIC Light element, LED, blue, front mount, 85-264VAC, screw connect.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-LED230-B 218059 Y7-218059 EATON ELECTRIC Light element, LED, blue, front mount, 85-264VAC, screw connect..

M22-LED230-B

218059

Y7-218059

EATON - MOELLER

20 Pcs.

Light element, LED, blue, front mount, 85-264VAC, screw connection M22-LED230-B Eaton Moeller® series M22 Light element, LED, blue, front mount, screw connection, 85-264 V AC LED element, Fixing: Front fixing, Connection technique: Screw terminals, Rated operational voltage: Ue= 85 - 264 V AC, 50/60 Hz V, Rated operational current: Ie= 5 - 15 mA, Power consumption: Pmax.= 0.33 W, At 230 V, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1

Automation > Lamp holder block for control circuit devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A light element provides the internal illumination necessary for illuminated pushbuttons and signal lights on automation control panels. The Eaton Moeller M22-LED230-B assembly integrates directly behind panel-mounted operators to deliver clear visual status alerts.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Transformer integrated (EF001358): No
  • With integrated voltage decreasing resistor (EF001399): No
  • With light source (EF005905): Yes
  • With integrated diode (EF001400): Yes
  • Rated voltage Ue at AC 50 Hz (EF007029): 85 V
  • Rated voltage Ue at AC 60 Hz (EF007030): 85 V
  • Rated voltage Ue at DC (EF007031): 0 V
  • Voltage type for actuating (EF008242): AC
  • Lamp type (EF002423): LED
  • Connection type auxiliary circuit (EF006820): Screw connection
  • Colour light source (EF001402): Blue
  • Type of fastening (EF002442): Front fastening

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory LED
Catalog Number
218059
Model Code
M22-LED230-B
EAN
4015082180591
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
37 mm
Product Weight
0.011 kg
Compliances
CE Marked
Certifications
EN 60947-5
IEC 60947-5
UL 508
CSA Std. C22.2 No. 14-05
CSA Std. C22.2 No. 94-91
VDE
UL Category Control No.: NKCR
IEC 60947-5-1
CSA-C22.2 No. 14-05
UL
IEC/EN 60947-5
UL File No.: E29184
CSA File No.: 012528
CE
CSA Class No.: 3211-03
CSA-C22.2 No. 94-91
CSA
