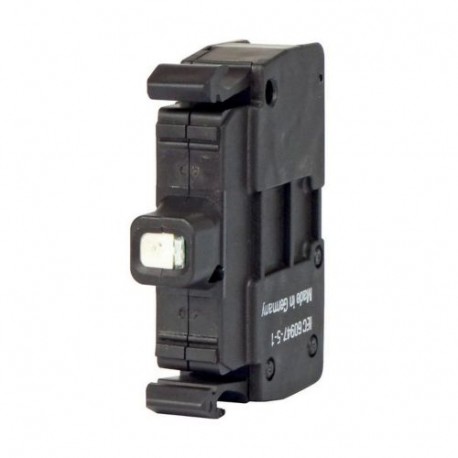

EATON - MOELLER M22-CLED-B M22-CLED-B 218061 Y7-218061 EATON ELECTRIC Light element, LED, blue, front mount, 12-30VAC/DC, spring clamp .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-CLED-B 218061 Y7-218061 EATON ELECTRIC Light element, LED, blue, front mount, 12-30VAC/DC, spring clamp ..

M22-CLED-B

218061

Y7-218061

EATON - MOELLER

20 Pcs.

Light element, LED, blue, front mount, 12-30VAC/DC, spring clamp connection M22-CLED-B Eaton Moeller® series M22 Light element, LED, blue, front mount, 12-30VAC/DC, spring clamp connection LED element, Fixing: Front fixing, Connection technique: Cage Clamp, Description: Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany, Rated operational voltage: Ue= 12 - 30 V AC/DC, 50/60 Hz V, Rated operational current: Ie= 8 - 15 mA, Power consumption: Pmax.= 0.26 W, at 24 V, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1

Automation > Lamp holder block for control circuit devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Utilizing convenient spring clamp connections, the M22-CLED-B Eaton Moeller blue light element delivers consistent LED signaling performance on industrial control stations. Engineers install these front-mounted modules to provide clear operational feedback on machine operator panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Transformer integrated (EF001358): No
  • With integrated voltage decreasing resistor (EF001399): No
  • With light source (EF005905): Yes
  • With integrated diode (EF001400): Yes
  • Rated voltage Ue at AC 50 Hz (EF007029): 12 V
  • Rated voltage Ue at AC 60 Hz (EF007030): 12 V
  • Rated voltage Ue at DC (EF007031): 12 V
  • Voltage type for actuating (EF008242): AC/DC
  • Lamp type (EF002423): LED
  • Connection type auxiliary circuit (EF006820): Spring clamp connection
  • Colour light source (EF001402): Blue
  • Type of fastening (EF002442): Front fastening

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory LED
Catalog Number
218061
Model Code
M22-CLED-B
EAN
4015082180614
Product Length/Depth
39 mm
Product Height
39 mm
Product Width
10 mm
Product Weight
0.01 kg
Certifications
CSA File No.: 012528
CSA-C22.2 No. 14-05
IEC/EN 60947-5
UL File No.: E29184
CE
UL Category Control No.: NKCR
UL
CSA Class No.: 3211-03
CSA-C22.2 No. 94-91
IEC 60947-5-1
UL 508
CSA
Catalog Notes
Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany
