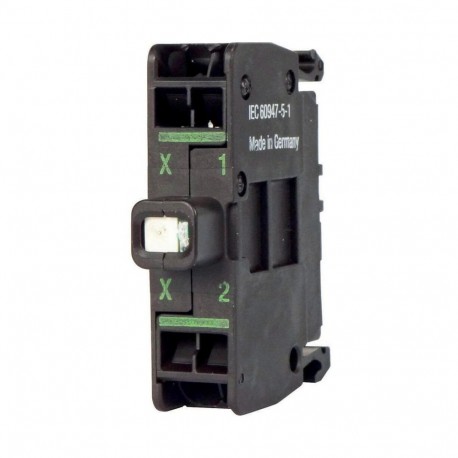

EATON - MOELLER M22-CLEDC230-B M22-CLEDC230-B 218064 Y7-218064 EATON ELECTRIC Light element, LED, blue, base fixing, 85-264VAC, spring clam.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-CLEDC230-B 218064 Y7-218064 EATON ELECTRIC Light element, LED, blue, base fixing, 85-264VAC, spring clam..

M22-CLEDC230-B

218064

Y7-218064

EATON - MOELLER

1 Pcs.

Light element, LED, blue, base fixing, 85-264VAC, spring clamp connection M22-CLEDC230-B Eaton Moeller® series M22 Light element, LED, blue, base fixing, 85-264VAC, spring clamp connection LED element, Fixing: Base fixing, Connection technique: Cage Clamp, Description: Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany, Rated operational voltage: Ue= 85 - 264 V AC, 50/60 Hz V, Rated operational current: Ie= 5 - 15 mA, Power consumption: Pmax.= 0.33 W, At 230 V, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1

Automation > Lamp holder block for control circuit devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory LED
Catalog Number
218064
Model Code
M22-CLEDC230-B
EAN
4015082180645
Product Length/Depth
39 mm
Product Height
39 mm
Product Width
10 mm
Product Weight
0.01 kg
Certifications
CE
IEC/EN 60947-5
CSA
CSA File No.: 012528
UL Category Control No.: NKCR
CSA-C22.2 No. 94-91
IEC 60947-5-1
UL File No.: E29184
UL
UL 508
CSA Class No.: 3211-03
CSA-C22.2 No. 14-05
Catalog Notes
Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany

ETIM for 218064 Low-voltage industrial controls and switchgear (EC000204)
Feature Name Feature Value
Transformer integrated (EF001358) No
With integrated voltage decreasing resistor (EF001399) No
With light source (EF005905) Yes
With integrated diode (EF001400) Yes
Lamp holder (EF000048) None
Rated voltage Ue at AC 50 Hz (EF007029) 85 V
Rated voltage Ue at AC 60 Hz (EF007030) 85 V
Rated voltage Ue at DC (EF007031) 0 V
Voltage type for actuating (EF008242) AC
Lamp type (EF002423) LED
Connection type auxiliary circuit (EF006820) Spring clamp connection
Colour light source (EF001402) Blue
Type of fastening (EF002442) Floor fastening
