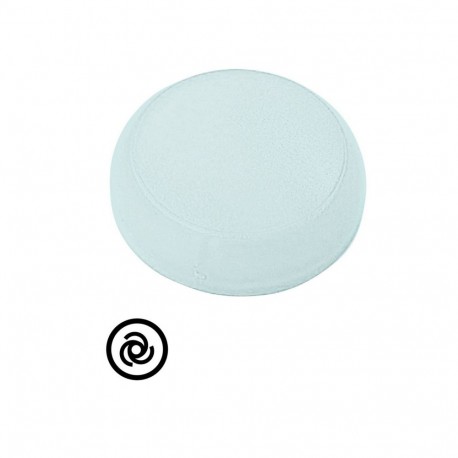

EATON - MOELLER M22-XL-W-X10 M22-XL-W-X10 218393 Y7-218393 EATON ELECTRIC Lens, indicator light white, flush, automatic sequence symbol View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-XL-W-X10 218393 Y7-218393 EATON ELECTRIC Lens, indicator light white, flush, automatic sequence symbol

M22-XL-W-X10

218393

Y7-218393

EATON - MOELLER

1 Pcs.

Lens, indicator light white, flush, automatic sequence symbol M22-XL-W-X10 Eaton Moeller® series M22 Lens, indicator light white, flush, automatic sequence symbol Ready-inscribed flat RMQ-Titan indicator light color lens. Fits on the indicator light front element. For instance can be used as a substitute and also to change an indicator light's color. Is approved for worldwide use.

Automation > Hood/lens for circuit control devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory Lens
Catalog Number
218393
Model Code
M22-XL-W-X10
EAN
4015082183936
Product Length/Depth
29 mm
Product Height
9 mm
Product Width
29 mm
Product Weight
0.002 kg
Certifications
UL/CSA certification not required

Features & Functions

Design
Flush
Flat
Features
Labelled
Inscription
Individual inscription possible: > 5 characters: letter height 3 mm
" Automatic "
Individual inscription possible: ≤ 5 characters: letter height 5 mm
Inscription type
Symbol
Lens color
White

General

Product category
Accessories
Type
Lenses for indicator lights

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C

Communication

Connection to SmartWire-DT
No

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 218393 Low-voltage industrial controls and switchgear (EC001072)
Feature Name Feature Value
Colour lens (EF000207) White
Shape of lens (EF001371) Round
Construction type (EF000767) Flat
Labelled (EF001537) Yes
Built-in diameter (EF000943) 22.5 mm
Diameter (EF000551) 29.6 mm
Width (EF000008) 29 mm
Height (EF000040) 9 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
