SL7-FL24-Y 171406 Y7-171406 EATON ELECTRIC Strobe light module yellow LED 24 V
SL7-FL24-Y
171406
Y7-171406
EATON - MOELLER
1 Pcs.
Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

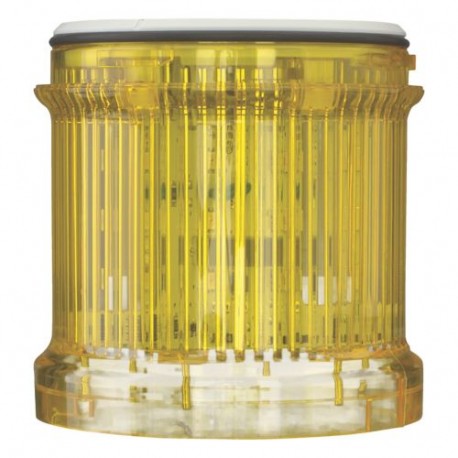

Eaton Moeller SL7-FL24-Y is a yellow LED strobe light module built to provide high-visibility flashing signals in industrial environments. Modular strobe lights are widely deployed on indicator columns to alert personnel to important equipment statuses or cautionary events.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Function (EF000030): Flash light
- Repetition frequency settable (EF018169): No
- Colour (EF000007): Yellow
- Outer diameter (EF000015): 73 mm
- Operating voltage AC 50 Hz (EF008206): 24 V
- Operating voltage AC 60 Hz (EF008207): 24 V
- Operating voltage DC (EF008208): 24 V
- Voltage type (EF000187): AC/DC
- Lamp type (EF002423): LED
- Housing colour (EF000136): Black
- Degree of protection (IP) (EF005474): IP66
- Degree of protection (NEMA) (EF011959): 4
More info
▲General specifications
CSA Certified
cULus Listed
UL 508
CSA Std. C22.2 No. 14-10
CSA Std. C22.2 No. 94-91
CSA Class No. NKCR7
UL Listed file E29184
IEC Rated
CSA Class No.: NKCR7
IEC/EN 60529
UL
CE
UL Category Control No.: NKCR
UL report applies to both US and Canada
IEC/EN 60947-5-1
UL File No.: E29184
CSA-C22.2 No. 14-10
Certified by UL for use in Canada
CSA-C22.2 No. 94-91
Features & Functions
Max. 10 (with base for mounting on both sides)
General
IP66
Enclosure: Polycarbonate (PC)
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
