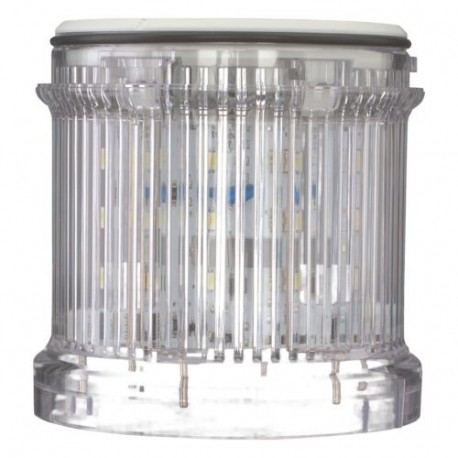

EATON - MOELLER SL7-FL24-W-HP SL7-FL24-W-HP 171423 Y7-171423 EATON ELECTRIC Strobe light module white high power LED 24 V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SL7-FL24-W-HP 171423 Y7-171423 EATON ELECTRIC Strobe light module white high power LED 24 V

SL7-FL24-W-HP

171423

Y7-171423

EATON - MOELLER

1 Pcs.

Strobe light module;white;high power LED;24 V SL7-FL24-W-HP Eaton Moeller® series SL7 Strobe light module;white;high power LED;24 V Strobe light module, Color Clear, High-performance LED for maximum signaling effect, Product range: SL signal towers, Degree of Protection: IP66, Protection type UL: Type 4, 4X, 13, Rated operational voltage: Ue= 24 V AC/DC, Type of light: Strobe light, Light elements: High Performance LED, Mounting position: As required, Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-1

Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A strobe light module white high power LED 24 V delivers intense flashing visual signals for industrial automation alarm systems and safety towers. These components allow maintenance teams and operators to quickly identify fault conditions across production machinery.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Function (EF000030): Flash light
  • Repetition frequency settable (EF018169): No
  • Outer diameter (EF000015): 73 mm
  • Operating voltage AC 50 Hz (EF008206): 18 V
  • Operating voltage AC 60 Hz (EF008207): 18 V
  • Operating voltage DC (EF008208): 18 V
  • Voltage type (EF000187): AC/DC
  • Lamp type (EF002423): LED
  • Housing colour (EF000136): Black
  • Degree of protection (IP) (EF005474): IP66
  • Degree of protection (NEMA) (EF011959): 4

More info

▲

General specifications

Product Name
Eaton Moeller® series SL7 Strobe light module
Catalog Number
171423
Model Code
SL7-FL24-W-HP
EAN
4015081679522
Product Length/Depth
73 mm
Product Height
73 mm
Product Width
73 mm
Product Weight
0.09 kg
Certifications
IEC/EN 60529
CSA Class No.: NKCR7
CSA-C22.2 No. 14-10
UL report applies to both US and Canada
Certified by UL for use in Canada
UL
IEC/EN 60947-5-1
UL Category Control No.: NKCR
CSA-C22.2 No. 94-91
UL File No.: E29184
CE
UL 508

Features & Functions

Color
Other
Enclosure color
Black
Functions
Flash light
Light modules
High Performance LED
Number of modules
Max. 5 (with standard base)
Max. 10 (with base for mounting on both sides)

General

Connection to SmartWire-DT
No
Current consumption
max. 130 mA at 24 V AC/DC
Degree of protection
NEMA 4
IP66
Flashing frequency
1.4 Hz
Lifespan, electrical
50,000 h
Light type
Strobe light
Material
Cap: Polycarbonate (PC)
Enclosure: Polycarbonate (PC)
Mounting position
As required
Overvoltage category
III
Pollution degree
3
Product Category
SL signal towers
Radiation angle
360 °
Rated impulse withstand voltage (Uimp)
4000 V AC
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Type
Voltage type
AC/DC

Climatic environmental conditions

Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
60 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Electrical rating

Leakage current
0.003 A
Rated insulation voltage (Ui)
250 V
Rated operational voltage (Ue) at AC - min
18 V
Rated operational voltage (Ue) at AC - max
26 V
Rated operational voltage (Ue) at DC - min
18 V
Rated operational voltage (Ue) at DC - max
30 V
