View larger

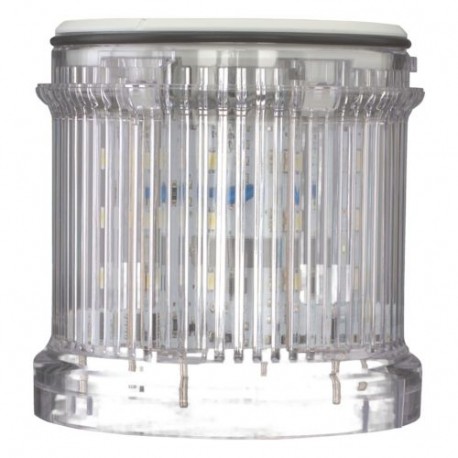

SL7-FL230-W 171417 Y7-171417 EATON ELECTRIC Strobe light module white LED 230 V
SL7-FL230-W
171417
Y7-171417
EATON - MOELLER
1 Pcs.
Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller SL7-FL230-W strobe light module delivers high-visibility optical alerts for industrial automation installations and heavy equipment setups. Strobe elements are deployed in signaling towers to signal critical operational warnings or emergency statuses across manufacturing floors.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Function (EF000030): Flash light
- Repetition frequency settable (EF018169): No
- Outer diameter (EF000015): 73 mm
- Operating voltage AC 50 Hz (EF008206): 230 V
- Operating voltage AC 60 Hz (EF008207): 230 V
- Operating voltage DC (EF008208): 0 V
- Voltage type (EF000187): AC
- Lamp type (EF002423): LED
- Housing colour (EF000136): Black
- Degree of protection (IP) (EF005474): IP66
- Degree of protection (NEMA) (EF011959): 4
More info
▲General specifications
UL Category Control No.: NKCR
Certified by UL for use in Canada
IEC/EN 60947-5-1
CSA-C22.2 No. 14-10
IEC/EN 60529
UL 508
UL
CSA-C22.2 No. 94-91
CE
UL File No.: E29184
CSA Class No.: NKCR7
Features & Functions
Max. 10 (with base for mounting on both sides)
General
NEMA 4
Enclosure: Polycarbonate (PC)
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
