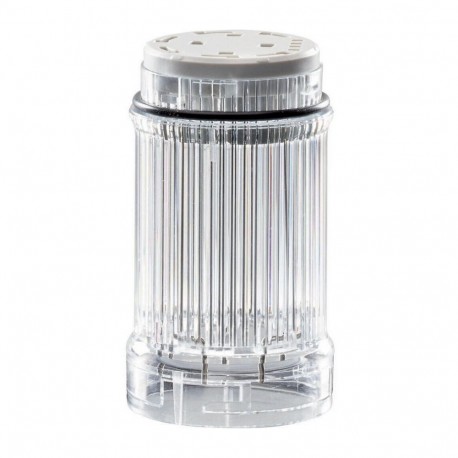

SL4-FL120-W 171364 Y7-171364 EATON ELECTRIC Strobe light module white LED 120 V
SL4-FL120-W
171364
Y7-171364
EATON - MOELLER
1 Pcs.
Strobe light module;white; LED;120 V
SL4-FL120-W
Eaton Moeller® series SL4 Strobe light module;white; LED;120 V
Strobe light module, Color Clear, Product range: SL signal towers, Degree of Protection: IP66, Protection type UL: Type 4, 4X, 13, Rated operational voltage: Ue= 110/120 V AC, Type of light: Strobe light, Light elements: LED, Mounting position: As required, Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-1
Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller SL4-FL120-W is a strobe light module featuring a white LED, built for installation on compact industrial signal towers to communicate system warnings.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Function (EF000030): Flash light
- Repetition frequency settable (EF018169): No
- Outer diameter (EF000015): 43 mm
- Operating voltage AC 50 Hz (EF008206): 110 V
- Operating voltage AC 60 Hz (EF008207): 110 V
- Operating voltage DC (EF008208): 0 V
- Voltage type (EF000187): AC
- Lamp type (EF002423): LED
- Housing colour (EF000136): Black
- Degree of protection (IP) (EF005474): IP66
- Degree of protection (NEMA) (EF011959): 4
More info
▲General specifications
Product Name
Eaton Moeller® series SL4 Strobe light module
Catalog Number
171364
Model Code
SL4-FL120-W
EAN
4015081678969
Product Length/Depth
43 mm
Product Height
75 mm
Product Width
43 mm
Product Weight
0.044 kg
Certifications
CE
Certified by UL for use in Canada
UL 508
UL Category Control No.: NKCR
IEC/EN 60529
UL report applies to both US and Canada
CSA-C22.2 No. 14-10
CSA-C22.2 No. 94-91
CSA Class No.: NKCR7
UL File No.: E29184
IEC/EN 60947-5-1
UL
Certified by UL for use in Canada
UL 508
UL Category Control No.: NKCR
IEC/EN 60529
UL report applies to both US and Canada
CSA-C22.2 No. 14-10
CSA-C22.2 No. 94-91
CSA Class No.: NKCR7
UL File No.: E29184
IEC/EN 60947-5-1
UL
Features & Functions
Color
Other
Enclosure color
Black
Functions
Flash light
Light modules
LED
Number of modules
Max. 5 (with standard base)
Max. 10 (with base for mounting on both sides)
Max. 10 (with base for mounting on both sides)
General
Connection to SmartWire-DT
No
Current consumption
24 mA at 110/120 V AC
Degree of protection
NEMA 4
IP66
IP66
Flashing frequency
1.4 Hz
Lifespan, electrical
100,000 h
Light type
Strobe light
Material
Cap: Polycarbonate (PC)
Enclosure: Polycarbonate (PC)
Enclosure: Polycarbonate (PC)
Mounting position
As required
Overvoltage category
III
Pollution degree
3
Product Category
SL signal towers
Radiation angle
360 °
Rated impulse withstand voltage (Uimp)
4000 V AC
Shock resistance
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Mechanical, According to IEC/EN 60068-2-27
Mechanical, According to IEC/EN 60068-2-27
Type
Strobe light module
Voltage type
AC
Climatic environmental conditions
Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
60 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, cyclic, to IEC 60068-2-30
Electrical rating
Leakage current
0.003 A
Rated insulation voltage (Ui)
250 V
Rated operational voltage (Ue) at AC - min
110 V
Rated operational voltage (Ue) at AC - max
120 V
Rated operational voltage (Ue) at DC - min
0 V
Rated operational voltage (Ue) at DC - max
0 V
