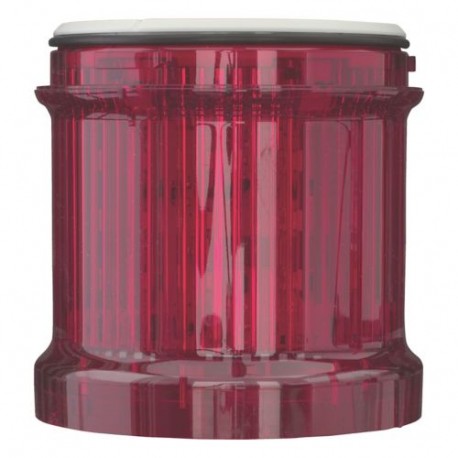

EATON - MOELLER SL7-FL24-R-HP SL7-FL24-R-HP 171422 Y7-171422 EATON ELECTRIC Strobe light module red high power LED 24 V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SL7-FL24-R-HP 171422 Y7-171422 EATON ELECTRIC Strobe light module red high power LED 24 V

SL7-FL24-R-HP

171422

Y7-171422

EATON - MOELLER

1 Pcs.

Strobe light module; red;high power LED;24 V SL7-FL24-R-HP Eaton Moeller® series SL7 Strobe light module; red;high power LED;24 V

Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A red high power LED strobe light module, cataloged as Eaton Moeller SL7-FL24-R-HP, acts as a prominent visual warning device on modular signal columns. Such lights are installed on industrial equipment to signal fault conditions, emergency stops, or critical safety alerts. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: SL7-FL24-R-HP
  • Catalogue code: 171422
  • Catalogue title: SL7-FL24-R-HP 171422 Y7-171422 EATON ELECTRIC Strobe light module red high power LED 24 V
  • Product description: General specifications Product Name Eaton Moeller® series SL7 Strobe light module Catalog Number 171422 Model Code SL7-FL24-R-HP EAN 4015081679515 Product Length/Depth 73 mm Product Height 73 mm Product Width 73 mm Produ
  • Manufacturer summary: Strobe light module; red;high power LED;24 V SL7-FL24-R-HP Eaton Moeller® series SL7 Strobe light module; red;high power LED;24 V

More info

▲

General specifications

Product Name
Eaton Moeller® series SL7 Strobe light module
Catalog Number
171422
Model Code
SL7-FL24-R-HP
EAN
4015081679515
Product Length/Depth
73 mm
Product Height
73 mm
Product Width
73 mm
Product Weight
0.09 kg
Certifications
CE
CSA Class No.: NKCR7
IEC/EN 60529
UL 508
CSA-C22.2 No. 94-91
IEC/EN 60947-5-1
UL report applies to both US and Canada
UL Category Control No.: NKCR
UL File No.: E29184
Certified by UL for use in Canada
CSA-C22.2 No. 14-10
UL

Features & Functions

Color
Red
Enclosure color
Black
Functions
Flash light
Light modules
High Performance LED
Number of modules
Max. 5 (with standard base)
Max. 10 (with base for mounting on both sides)

General

Connection to SmartWire-DT
No
Current consumption
0.26 - 0.265 A, at 24 V AC/DC
Degree of protection
NEMA 4
IP66
Flashing frequency
1.4 Hz
Lifespan, electrical
50,000 h
Light type
Strobe light
Material
Enclosure: Polycarbonate (PC)
Cap: Polycarbonate (PC)
Mounting position
As required
Overvoltage category
III
Pollution degree
3
Product Category
SL signal towers
Radiation angle
360 °
Rated impulse withstand voltage (Uimp)
4000 V AC
Shock resistance
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Mechanical, According to IEC/EN 60068-2-27
Type
Voltage type
AC/DC

Climatic environmental conditions

Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
60 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Electrical rating

Leakage current
0.003 A
Rated insulation voltage (Ui)
250 V
Rated operational voltage (Ue) at AC - min
18 V
Rated operational voltage (Ue) at AC - max
26 V
Rated operational voltage (Ue) at DC - min
18 V
Rated operational voltage (Ue) at DC - max
30 V
