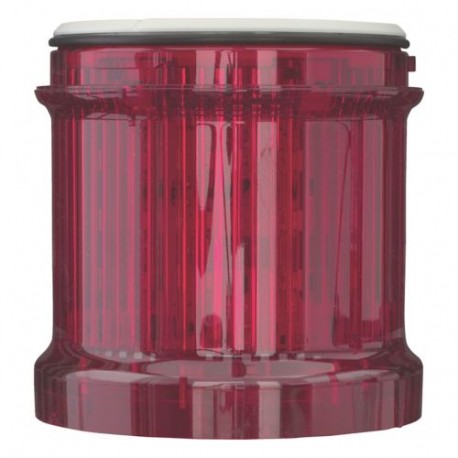

EATON - MOELLER SL7-FL24-R SL7-FL24-R 171404 Y7-171404 EATON ELECTRIC Strobe light module red LED 24 V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SL7-FL24-R 171404 Y7-171404 EATON ELECTRIC Strobe light module red LED 24 V

SL7-FL24-R

171404

Y7-171404

EATON - MOELLER

1 Pcs.

Strobe light module; red; LED;24 V SL7-FL24-R Eaton Moeller® series SL7 Strobe light module; red; LED;24 V Strobe light module, Color Red, Product range: SL signal towers, Degree of Protection: IP66, Protection type UL: Type 4, 4X, 13, Rated operational voltage: Ue= 24 V AC/DC, Type of light: Strobe light, Light elements: LED, Mounting position: As required, Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-1

Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series SL7 Strobe light module
Catalog Number
171404
Model Code
SL7-FL24-R
EAN
4015081678242
Product Length/Depth
73 mm
Product Height
73 mm
Product Width
73 mm
Product Weight
0.08 kg
Compliances
CE Marked
Certifications
CSA Certified
cULus Listed
CSA Std. C22.2 No. 94-91
IEC Rated
CSA Class No. NKCR7
CSA Std. C22.2 No. 14-10
UL Listed
UL 508
UL Listed file E29184
CE
IEC/EN 60529
CSA Class No.: NKCR7
UL Category Control No.: NKCR
CSA-C22.2 No. 14-10
UL File No.: E29184
UL report applies to both US and Canada
CSA-C22.2 No. 94-91
UL
Certified by UL for use in Canada
IEC/EN 60947-5-1
Catalog Notes
0

Features & Functions

Color
Red
Enclosure color
Black
Functions
Flash light
Light modules
LED
Number of modules
Max. 10 (with base for mounting on both sides)
Max. 5 (with standard base)

General

Connection to SmartWire-DT
No
Current consumption
0.13 - 0.135 A, at 24 V AC/DC
Degree of protection
NEMA 4X
IP66
Flashing frequency
1.4 Hz
Frequency rating
1.4 Hz
Lifespan, electrical
100,000 h
Light type
Strobe light
Material
Cap: Polycarbonate (PC)
Enclosure: Polycarbonate (PC)
Mounting position
As required
Overvoltage category
III
Pollution degree
3
Product Category
SL signal towers
Radiation angle
360 °
Rated impulse withstand voltage (Uimp)
4000 V AC
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Type
Strobe light module
Voltage type
AC/DC

Climatic environmental conditions

Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
60 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Electrical rating

Leakage current
0.003 A
Rated insulation voltage (Ui)
250 V
Rated operational voltage (Ue) at AC - min
24 V
Rated operational voltage (Ue) at AC - max
24 V
Rated operational voltage (Ue) at DC - min
24 V
Rated operational voltage (Ue) at DC - max
24 V

ETIM for 171404 Low-voltage industrial controls and switchgear (EC000232)
Feature Name Feature Value
Function (EF000030) Flash light
Repetition frequency settable (EF018169) No
Colour (EF000007) Red
Outer diameter (EF000015) 73 mm
Operating voltage AC 50 Hz (EF008206) 24 V
Operating voltage AC 60 Hz (EF008207) 24 V
Operating voltage DC (EF008208) 24 V
Voltage type (EF000187) AC/DC
Lamp type (EF002423) LED
Housing colour (EF000136) Black
Degree of protection (IP) (EF005474) IP66
Degree of protection (NEMA) (EF011959) 4X
