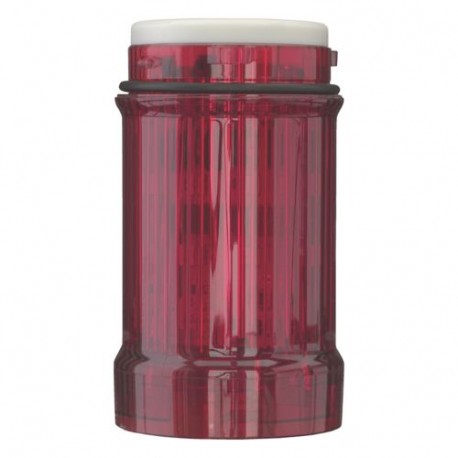

SL4-FL24-R 171357 Y7-171357 EATON ELECTRIC Strobe light module red LED 24 V
SL4-FL24-R
171357
Y7-171357
EATON - MOELLER
1 Pcs.
Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A SL4-FL24-R 171357 Y7-171357 EATON ELECTRIC Strobe light module red LED 24 V is utilized in industrial machinery and control systems as a prominent optical warning device to signal alarm states, faults, or urgent operational alerts. Strobe modules add high-visibility flashing feedback to modular signal columns.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Function (EF000030): Flash light
- Repetition frequency settable (EF018169): No
- Colour (EF000007): Red
- Outer diameter (EF000015): 43 mm
- Operating voltage AC 50 Hz (EF008206): 24 V
- Operating voltage AC 60 Hz (EF008207): 24 V
- Operating voltage DC (EF008208): 24 V
- Voltage type (EF000187): AC/DC
- Lamp type (EF002423): LED
- Housing colour (EF000136): Black
- Degree of protection (IP) (EF005474): IP66
- Degree of protection (NEMA) (EF011959): 4X
More info
▲General specifications
CSA-C22.2 No. 14-10
CSA-C22.2 No. 94-91
CE
UL Category Control No.: NKCR
UL report applies to both US and Canada
UL
Certified by UL for use in Canada
UL File No.: E29184
UL 508
IEC/EN 60947-5-1
IEC/EN 60529
Features & Functions
Max. 5 (with standard base)
General
NEMA 4X
Enclosure: Polycarbonate (PC)
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
