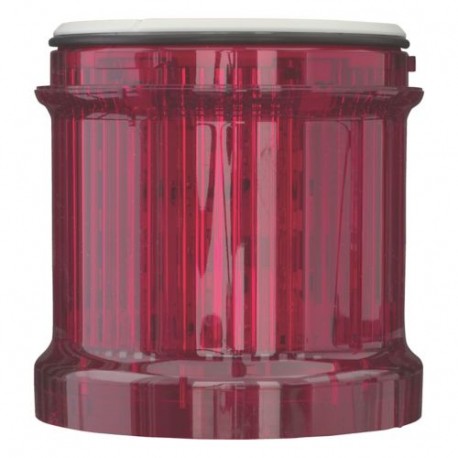

EATON - MOELLER SL7-FL230-R SL7-FL230-R 171416 Y7-171416 EATON ELECTRIC Strobe light module red LED 230 V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SL7-FL230-R 171416 Y7-171416 EATON ELECTRIC Strobe light module red LED 230 V

SL7-FL230-R

171416

Y7-171416

EATON - MOELLER

1 Pcs.

Strobe light module; red; LED;230 V SL7-FL230-R Eaton Moeller® series SL7 Strobe light module; red; LED;230 V Strobe light module, Color Red, Product range: SL signal towers, Degree of Protection: IP66, Protection type UL: Type 4, 4X, 13, Rated operational voltage: Ue= 230/240 V AC, Type of light: Strobe light, Light elements: LED, Mounting position: As required, Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-1

Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series SL7 Strobe light module
Catalog Number
171416
Model Code
SL7-FL230-R
EAN
4015081678266
Product Length/Depth
73 mm
Product Height
73 mm
Product Width
73 mm
Product Weight
0.083 kg
Compliances
CE Marked
Certifications
UL Listed
CSA Certified
cULus Listed
UL 508
UL Listed file E29184
CSA Std. C22.2 No. 94-91
CSA Std. C22.2 No. 14-10
CSA Class No. NKCR7
IEC Rated
UL report applies to both US and Canada
UL Category Control No.: NKCR
UL
CE
IEC/EN 60529
IEC/EN 60947-5-1
CSA Class No.: NKCR7
CSA-C22.2 No. 94-91
Certified by UL for use in Canada
CSA-C22.2 No. 14-10
UL File No.: E29184
Catalog Notes
0

Features & Functions

Color
Red
Enclosure color
Black
Functions
Flash light
Light modules
LED
Number of modules
Max. 10 (with base for mounting on both sides)
Max. 5 (with standard base)

General

Connection to SmartWire-DT
No
Current consumption
0.01 A, at 230/240 V AC
Degree of protection
NEMA 4
IP66
Flashing frequency
1.4 Hz
Frequency rating
1.4 Hz
Lifespan, electrical
100,000 h
Light type
Strobe light
Material
Enclosure: Polycarbonate (PC)
Cap: Polycarbonate (PC)
Mounting position
As required
Overvoltage category
III
Pollution degree
3
Product Category
SL signal towers
Radiation angle
360 °
Rated impulse withstand voltage (Uimp)
4000 V AC
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Type
Strobe light module
Voltage type
AC

Climatic environmental conditions

Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
60 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Electrical rating

Leakage current
0.003 A
Rated insulation voltage (Ui)
250 V
Rated operational voltage (Ue) at AC - min
230 V
Rated operational voltage (Ue) at AC - max
240 V
Rated operational voltage (Ue) at DC - min
0 V
Rated operational voltage (Ue) at DC - max
0 V

ETIM for 171416 Low-voltage industrial controls and switchgear (EC000232)
Feature Name Feature Value
Function (EF000030) Flash light
Repetition frequency settable (EF018169) No
Colour (EF000007) Red
Outer diameter (EF000015) 73 mm
Operating voltage AC 50 Hz (EF008206) 230 V
Operating voltage AC 60 Hz (EF008207) 230 V
Operating voltage DC (EF008208) 0 V
Voltage type (EF000187) AC
Lamp type (EF002423) LED
Housing colour (EF000136) Black
Degree of protection (IP) (EF005474) IP66
Degree of protection (NEMA) (EF011959) 4
