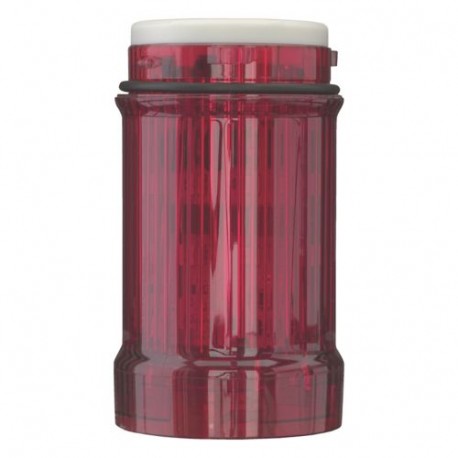

SL4-FL230-R 171369 Y7-171369 EATON ELECTRIC Strobe light module red LED 230 V
SL4-FL230-R
171369
Y7-171369
EATON - MOELLER
1 Pcs.
Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Featuring a compact diameter, the SL4-FL230-R strobe light module from Eaton Moeller provides high-impact visual warnings for space-constrained industrial panels and machines. Strobe elements are standard components in modular signaling configurations, ensuring high-visibility alerts during urgent operational states. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Function (EF000030): Flash light
- Repetition frequency settable (EF018169): No
- Colour (EF000007): Red
- Outer diameter (EF000015): 43 mm
- Operating voltage AC 50 Hz (EF008206): 230 V
- Operating voltage AC 60 Hz (EF008207): 230 V
- Operating voltage DC (EF008208): 0 V
- Voltage type (EF000187): AC
- Lamp type (EF002423): LED
- Housing colour (EF000136): Black
- Degree of protection (IP) (EF005474): IP66
- Degree of protection (NEMA) (EF011959): 4
More info
▲General specifications
UL Category Control No.: NKCR
UL report applies to both US and Canada
CSA Class No.: NKCR7
UL 508
UL File No.: E29184
UL
IEC/EN 60947-5-1
Certified by UL for use in Canada
CSA-C22.2 No. 94-91
CE
IEC/EN 60529
Features & Functions
Max. 10 (with base for mounting on both sides)
General
IP66
Cap: Polycarbonate (PC)
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
