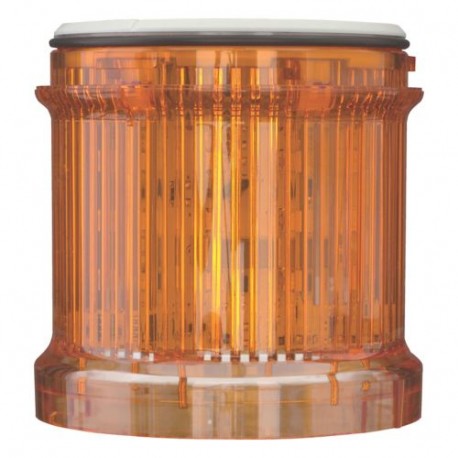

EATON - MOELLER SL7-FL24-A SL7-FL24-A 171407 Y7-171407 EATON ELECTRIC Strobe light module orange LED 24 V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SL7-FL24-A 171407 Y7-171407 EATON ELECTRIC Strobe light module orange LED 24 V

SL7-FL24-A

171407

Y7-171407

EATON - MOELLER

1 Pcs.

Strobe light module; orange; LED;24 V SL7-FL24-A Eaton Moeller® series SL7 Strobe light module; orange; LED;24 V Strobe light module, Color Orange, Product range: SL signal towers, Degree of Protection: IP66, Protection type UL: Type 4, 4X, 13, Rated operational voltage: Ue= 24 V AC/DC, Type of light: Strobe light, Light elements: LED, Mounting position: As required, Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-1

Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller SL7-FL24-A is an orange LED strobe light module built to deliver prominent visual warning signals on machinery and control panels. Optical elements of this kind are integrated into modular signal towers to denote cautionary states or operational transitions.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Function (EF000030): Flash light
  • Repetition frequency settable (EF018169): No
  • Colour (EF000007): Orange
  • Outer diameter (EF000015): 73 mm
  • Operating voltage AC 50 Hz (EF008206): 24 V
  • Operating voltage AC 60 Hz (EF008207): 24 V
  • Operating voltage DC (EF008208): 24 V
  • Voltage type (EF000187): AC/DC
  • Lamp type (EF002423): LED
  • Housing colour (EF000136): Black
  • Degree of protection (IP) (EF005474): IP66
  • Degree of protection (NEMA) (EF011959): 4

More info

▲

General specifications

Product Name
Eaton Moeller® series SL7 Strobe light module
Catalog Number
171407
Model Code
SL7-FL24-A
EAN
4015081679393
Product Length/Depth
73 mm
Product Height
73 mm
Product Width
73 mm
Product Weight
0.08 kg
Certifications
UL report applies to both US and Canada
CSA Class No.: NKCR7
CSA-C22.2 No. 14-10
UL 508
Certified by UL for use in Canada
CE
IEC/EN 60947-5-1
UL Category Control No.: NKCR
CSA-C22.2 No. 94-91
IEC/EN 60529
UL
UL File No.: E29184

Features & Functions

Color
Orange
Enclosure color
Black
Functions
Flash light
Light modules
LED
Number of modules
Max. 5 (with standard base)
Max. 10 (with base for mounting on both sides)

General

Connection to SmartWire-DT
No
Current consumption
0.13 - 0.135 A, at 24 V AC/DC
Degree of protection
IP66
NEMA 4
Flashing frequency
1.4 Hz
Lifespan, electrical
100,000 h
Light type
Strobe light
Material
Cap: Polycarbonate (PC)
Enclosure: Polycarbonate (PC)
Mounting position
As required
Overvoltage category
III
Pollution degree
3
Product Category
SL signal towers
Radiation angle
360 °
Rated impulse withstand voltage (Uimp)
4000 V AC
Shock resistance
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Mechanical, According to IEC/EN 60068-2-27
Type
Strobe light module
Voltage type
AC/DC

Climatic environmental conditions

Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
60 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Electrical rating

Leakage current
0.003 A
Rated insulation voltage (Ui)
250 V
Rated operational voltage (Ue) at AC - min
24 V
Rated operational voltage (Ue) at AC - max
24 V
Rated operational voltage (Ue) at DC - min
24 V
Rated operational voltage (Ue) at DC - max
24 V
