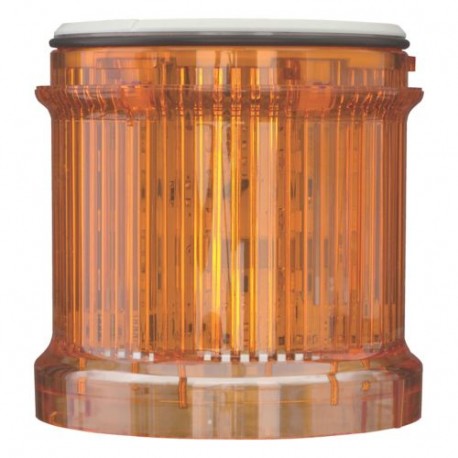

EATON - MOELLER SL7-FL230-A SL7-FL230-A 171419 Y7-171419 EATON ELECTRIC Strobe light module orange LED 230 V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SL7-FL230-A 171419 Y7-171419 EATON ELECTRIC Strobe light module orange LED 230 V

SL7-FL230-A

171419

Y7-171419

EATON - MOELLER

1 Pcs.

Strobe light module; orange; LED;230 V SL7-FL230-A Eaton Moeller® series SL7 Strobe light module; orange; LED;230 V Strobe light module, Color Orange, Product range: SL signal towers, Degree of Protection: IP66, Protection type UL: Type 4, 4X, 13, Rated operational voltage: Ue= 230/240 V AC, Type of light: Strobe light, Light elements: LED, Mounting position: As required, Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-1

Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller SL7-FL230-A is a strobe light module designed to provide prominent visual warnings in complex industrial automation setups. Stackable signal beacons are typically installed on machine housings or control panels to alert operators to critical operational events. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Function (EF000030): Flash light
  • Repetition frequency settable (EF018169): No
  • Colour (EF000007): Orange
  • Outer diameter (EF000015): 73 mm
  • Operating voltage AC 50 Hz (EF008206): 230 V
  • Operating voltage AC 60 Hz (EF008207): 230 V
  • Operating voltage DC (EF008208): 0 V
  • Voltage type (EF000187): AC
  • Lamp type (EF002423): LED
  • Housing colour (EF000136): Black
  • Degree of protection (IP) (EF005474): IP66
  • Degree of protection (NEMA) (EF011959): 13

More info

▲

General specifications

Product Name
Eaton Moeller® series SL7 Strobe light module
Catalog Number
171419
Model Code
SL7-FL230-A
EAN
4015081679492
Product Length/Depth
73 mm
Product Height
73 mm
Product Width
73 mm
Product Weight
0.083 kg
Certifications
CE
Certified by UL for use in Canada
UL Category Control No.: NKCR
UL 508
IEC/EN 60947-5-1
CSA Class No.: NKCR7
IEC/EN 60529
UL
CSA-C22.2 No. 14-10
CSA-C22.2 No. 94-91
UL File No.: E29184
UL report applies to both US and Canada

Features & Functions

Color
Orange
Enclosure color
Black
Functions
Flash light
Light modules
LED
Number of modules
Max. 5 (with standard base)
Max. 10 (with base for mounting on both sides)

General

Connection to SmartWire-DT
No
Current consumption
20 mA at 230/240 V AC
Degree of protection
NEMA 13
IP66
Flashing frequency
1.4 Hz
Lifespan, electrical
100,000 h
Light type
Strobe light
Material
Enclosure: Polycarbonate (PC)
Cap: Polycarbonate (PC)
Mounting position
As required
Overvoltage category
III
Pollution degree
3
Product Category
SL signal towers
Radiation angle
360 °
Rated impulse withstand voltage (Uimp)
4000 V AC
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Type
Strobe light module
Voltage type
AC

Climatic environmental conditions

Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
60 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Electrical rating

Leakage current
0.003 A
Rated insulation voltage (Ui)
250 V
Rated operational voltage (Ue) at AC - min
230 V
Rated operational voltage (Ue) at AC - max
240 V
Rated operational voltage (Ue) at DC - min
0 V
Rated operational voltage (Ue) at DC - max
0 V
