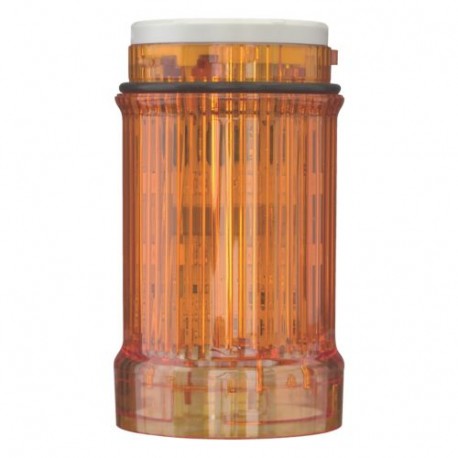

SL4-FL230-A 171372 Y7-171372 EATON ELECTRIC Strobe light module orange LED 230 V
SL4-FL230-A
171372
Y7-171372
EATON - MOELLER
1 Pcs.
Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller SL4-FL230-A 171372 Y7-171372 EATON ELECTRIC Strobe light module orange LED 230 V serves as a flashing optical indicator for industrial stack light systems. These modules attach to automated manufacturing equipment to provide conspicuous visual warnings to personnel in the vicinity. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Function (EF000030): Flash light
- Repetition frequency settable (EF018169): No
- Colour (EF000007): Orange
- Outer diameter (EF000015): 43 mm
- Operating voltage AC 50 Hz (EF008206): 230 V
- Operating voltage AC 60 Hz (EF008207): 230 V
- Operating voltage DC (EF008208): 0 V
- Voltage type (EF000187): AC
- Lamp type (EF002423): LED
- Housing colour (EF000136): Black
- Degree of protection (IP) (EF005474): IP66
- Degree of protection (NEMA) (EF011959): 13
More info
▲General specifications
Certified by UL for use in Canada
CSA-C22.2 No. 14-10
UL 508
UL
IEC/EN 60529
UL File No.: E29184
UL Category Control No.: NKCR
IEC/EN 60947-5-1
CSA-C22.2 No. 94-91
UL report applies to both US and Canada
CSA Class No.: NKCR7
Features & Functions
Max. 10 (with base for mounting on both sides)
General
IP66
Enclosure: Polycarbonate (PC)
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
