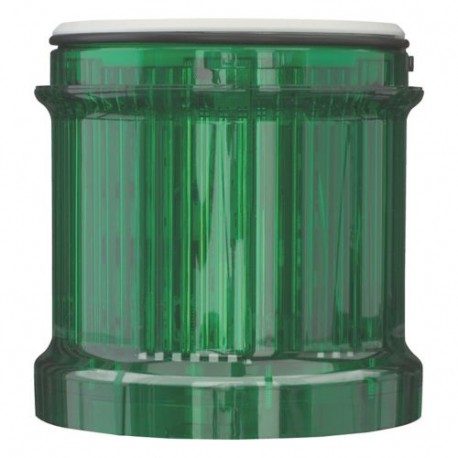

EATON - MOELLER SL7-FL24-G-HP SL7-FL24-G-HP 171421 Y7-171421 EATON ELECTRIC Strobe light module green high power LED 24 V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SL7-FL24-G-HP 171421 Y7-171421 EATON ELECTRIC Strobe light module green high power LED 24 V

SL7-FL24-G-HP

171421

Y7-171421

EATON - MOELLER

1 Pcs.

Strobe light module; green;high power LED;24 V SL7-FL24-G-HP Eaton Moeller® series SL7 Strobe light module; green;high power LED;24 V Strobe light module, Color green, High-performance LED for maximum signaling effect, Product range: SL signal towers, Degree of Protection: IP66, Protection type UL: Type 4, 4X, 13, Rated operational voltage: Ue= 24 V AC/DC, Type of light: Strobe light, Light elements: High Performance LED, Mounting position: As required, Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-1

Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series SL7 Strobe light module
Catalog Number
171421
Model Code
SL7-FL24-G-HP
EAN
4015081679508
Product Length/Depth
73 mm
Product Height
73 mm
Product Width
73 mm
Product Weight
0.09 kg
Certifications
UL report applies to both US and Canada
Certified by UL for use in Canada
CSA-C22.2 No. 14-10
UL Category Control No.: NKCR
UL File No.: E29184
CE
UL 508
CSA-C22.2 No. 94-91
IEC/EN 60529
UL
CSA Class No.: NKCR7
IEC/EN 60947-5-1

Features & Functions

Color
Green
Enclosure color
Black
Functions
Flash light
Light modules
High Performance LED
Number of modules
Max. 10 (with base for mounting on both sides)
Max. 5 (with standard base)

General

Connection to SmartWire-DT
No
Current consumption
max. 130 mA at 24 V AC/DC
Degree of protection
IP66
NEMA 13
Flashing frequency
1.4 Hz
Lifespan, electrical
50,000 h
Light type
Strobe light
Material
Cap: Polycarbonate (PC)
Enclosure: Polycarbonate (PC)
Mounting position
As required
Overvoltage category
III
Pollution degree
3
Product Category
SL signal towers
Radiation angle
360 °
Rated impulse withstand voltage (Uimp)
4000 V AC
Shock resistance
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Mechanical, According to IEC/EN 60068-2-27
Type
Voltage type
AC/DC

Climatic environmental conditions

Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
60 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Electrical rating

Leakage current
0.003 A
Rated insulation voltage (Ui)
250 V
Rated operational voltage (Ue) at AC - min
18 V
Rated operational voltage (Ue) at AC - max
26 V
Rated operational voltage (Ue) at DC - min
18 V
Rated operational voltage (Ue) at DC - max
30 V

ETIM for 171421 Low-voltage industrial controls and switchgear (EC000232)
Feature Name Feature Value
Function (EF000030) Flash light
Repetition frequency settable (EF018169) No
Colour (EF000007) Green
Outer diameter (EF000015) 73 mm
Operating voltage AC 50 Hz (EF008206) 18 V
Operating voltage AC 60 Hz (EF008207) 18 V
Operating voltage DC (EF008208) 18 V
Voltage type (EF000187) AC/DC
Lamp type (EF002423) LED
Housing colour (EF000136) Black
Degree of protection (IP) (EF005474) IP66
Degree of protection (NEMA) (EF011959) 13
