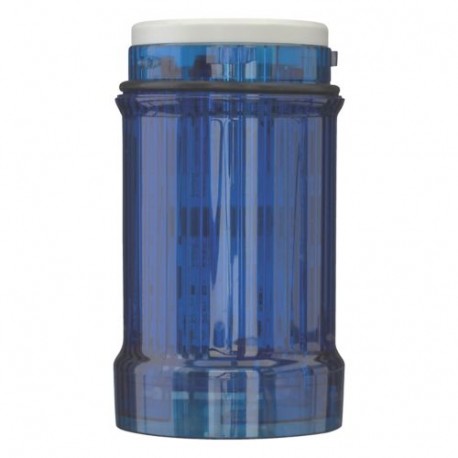

EATON - MOELLER SL4-FL24-B SL4-FL24-B 171355 Y7-171355 EATON ELECTRIC Strobe light module blue LED 24 V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SL4-FL24-B 171355 Y7-171355 EATON ELECTRIC Strobe light module blue LED 24 V

SL4-FL24-B

171355

Y7-171355

EATON - MOELLER

1 Pcs.

Strobe light module; blue; LED;24 V SL4-FL24-B Eaton Moeller® series SL4 Strobe light module, blue, LED, 24 V Strobe light module, Color Blue, Product range: SL signal towers, Degree of Protection: IP66, Protection type UL: Type 4, 4X, 13, Rated operational voltage: Ue= 24 V AC/DC, Type of light: Strobe light, Light elements: LED, Mounting position: As required, Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-1

Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller SL4-FL24-B 171355 Y7-171355 EATON ELECTRIC Strobe light module blue LED 24 V operates as a high-intensity flashing optical element for modular signal towers. Stack lights and strobe modules are commonly mounted on industrial machinery to signal urgent alerts or system warnings to operators. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Function (EF000030): Flash light
  • Repetition frequency settable (EF018169): No
  • Colour (EF000007): Blue
  • Outer diameter (EF000015): 43 mm
  • Operating voltage AC 50 Hz (EF008206): 24 V
  • Operating voltage AC 60 Hz (EF008207): 24 V
  • Operating voltage DC (EF008208): 24 V
  • Voltage type (EF000187): AC/DC
  • Lamp type (EF002423): LED
  • Housing colour (EF000136): Black
  • Degree of protection (IP) (EF005474): IP66
  • Degree of protection (NEMA) (EF011959): 4

More info

▲

General specifications

Product Name
Eaton Moeller® series SL4 Strobe light module
Catalog Number
171355
Model Code
SL4-FL24-B
EAN
4015081678884
Product Length/Depth
43 mm
Product Height
75 mm
Product Width
43 mm
Product Weight
0.043 kg
Certifications
Certified by UL for use in Canada
CSA-C22.2 No. 94-91
UL File No.: E29184
UL
CSA Class No.: NKCR7
CE
CSA-C22.2 No. 14-10
UL report applies to both US and Canada
IEC/EN 60947-5-1
IEC/EN 60529
UL 508
UL Category Control No.: NKCR

Features & Functions

Color
Blue
Enclosure color
Black
Functions
Flash light
Light modules
LED
Number of modules
Max. 10 (with base for mounting on both sides)
Max. 5 (with standard base)

General

Connection to SmartWire-DT
No
Current consumption
max. 130 mA at 24 V AC/DC
Degree of protection
NEMA 4
IP66
Flashing frequency
1.4 Hz
Lifespan, electrical
100,000 h
Light type
Strobe light
Material
Cap: Polycarbonate (PC)
Enclosure: Polycarbonate (PC)
Mounting position
As required
Overvoltage category
III
Pollution degree
3
Product Category
SL signal towers
Radiation angle
360 °
Rated impulse withstand voltage (Uimp)
4000 V AC
Shock resistance
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Mechanical, According to IEC/EN 60068-2-27
Type
Strobe light module
Voltage type
AC/DC

Climatic environmental conditions

Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
60 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Electrical rating

Leakage current
0.003 A
Rated insulation voltage (Ui)
250 V
Rated operational voltage (Ue) at AC - min
24 V
Rated operational voltage (Ue) at AC - max
24 V
Rated operational voltage (Ue) at DC - min
24 V
Rated operational voltage (Ue) at DC - max
24 V
