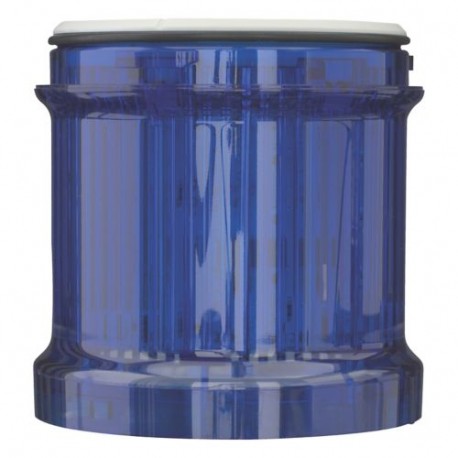

SL7-FL230-B 171414 Y7-171414 EATON ELECTRIC Strobe light module blue LED 230 V
SL7-FL230-B
171414
Y7-171414
EATON - MOELLER
1 Pcs.
Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller SL7-FL230-B strobe light module blue LED 230 V provides prominent optical signaling for industrial safety and process monitoring systems. Strobe elements are routinely placed at the top of signal towers to ensure urgent alerts are easily spotted in large facilities.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Function (EF000030): Flash light
- Repetition frequency settable (EF018169): No
- Colour (EF000007): Blue
- Outer diameter (EF000015): 73 mm
- Operating voltage AC 50 Hz (EF008206): 230 V
- Operating voltage AC 60 Hz (EF008207): 230 V
- Operating voltage DC (EF008208): 0 V
- Voltage type (EF000187): AC
- Lamp type (EF002423): LED
- Housing colour (EF000136): Black
- Degree of protection (IP) (EF005474): IP66
- Degree of protection (NEMA) (EF011959): 13
More info
▲General specifications
UL File No.: E29184
UL report applies to both US and Canada
Certified by UL for use in Canada
IEC/EN 60947-5-1
CSA-C22.2 No. 94-91
IEC/EN 60529
CSA-C22.2 No. 14-10
CSA Class No.: NKCR7
UL
UL Category Control No.: NKCR
CE
Features & Functions
Max. 10 (with base for mounting on both sides)
General
NEMA 13
Enclosure: Polycarbonate (PC)
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
