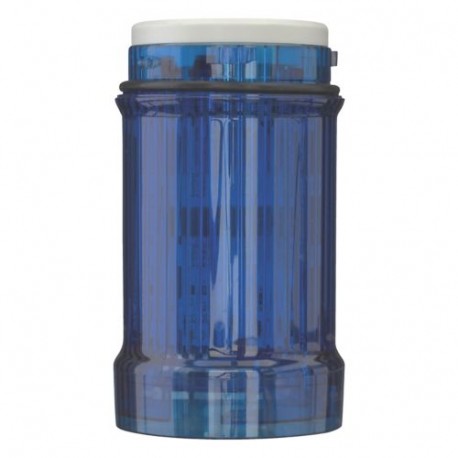

SL4-FL230-B 171367 Y7-171367 EATON ELECTRIC Strobe light module blue LED 230 V
SL4-FL230-B
171367
Y7-171367
EATON - MOELLER
1 Pcs.
Strobe light module; blue; LED;230 V
SL4-FL230-B
Strobe light module, Color Blue, Product range: SL signal towers, Degree of Protection: IP66, Protection type UL: Type 4, 4X, 13, Rated operational voltage: Ue= 230/240 V AC, Type of light: Strobe light, Light elements: LED, Mounting position: As required, Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-1
Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller SL4-FL230-B is a strobe light module featuring an LED light source, designed for optical signaling applications in industrial environments. Strobe elements provide attention-grabbing visual alerts for critical machine conditions or faults. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Function (EF000030): Flash light
- Repetition frequency settable (EF018169): No
- Colour (EF000007): Blue
- Outer diameter (EF000015): 43 mm
- Operating voltage AC 50 Hz (EF008206): 230 V
- Operating voltage AC 60 Hz (EF008207): 230 V
- Operating voltage DC (EF008208): 0 V
- Voltage type (EF000187): AC
- Lamp type (EF002423): LED
- Housing colour (EF000136): Black
- Degree of protection (IP) (EF005474): IP66
- Degree of protection (NEMA) (EF011959): 13
More info
▲Strobe light module; blue; LED;230 V
Strobe light module, Color Blue, Product range: SL signal towers, Degree of Protection: IP66, Protection type UL: Type 4, 4X, 13, Rated operational voltage: Ue= 230/240 V AC, Type of light: Strobe light, Light elements: LED, Mounting position: As required, Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-1
General specifications
Product name
Eaton Moeller® series SL4 Strobe light module
Part no.
SL4-FL230-B
EAN
4015081678983
Product Length/Depth
43 millimetre
Product height
75 millimetre
Product width
43 millimetre
Product weight
0.044 kilogram
Certifications
CE
IEC/EN 60529
UL report applies to both US and Canada
IEC/EN 60947-5-1
UL
CSA Class No.: NKCR7
UL 508
CSA-C22.2 No. 14-10
UL File No.: E29184
UL Category Control No.: NKCR
Certified by UL for use in Canada
CSA-C22.2 No. 94-91
IEC/EN 60529
UL report applies to both US and Canada
IEC/EN 60947-5-1
UL
CSA Class No.: NKCR7
UL 508
CSA-C22.2 No. 14-10
UL File No.: E29184
UL Category Control No.: NKCR
Certified by UL for use in Canada
CSA-C22.2 No. 94-91
Product Tradename
SL4
Product Type
Strobe light module
Product Sub Type
None
Features & Functions
Color
Blue
Enclosure color
Black
Functions
Flash light
Light modules
LED
Number of modules
Max. 10 (with base for mounting on both sides)
Max. 5 (with standard base)
Max. 5 (with standard base)
General information
Connection to SmartWire-DT
No
Current consumption
0.1 A, at 230/240 V AC
Degree of protection
NEMA 13
IP66
IP66
Flashing frequency
1.4 Hz
Lifespan, electrical
100,000 h
Light type
Strobe light
Material
Cap: Polycarbonate (PC)
Enclosure: Polycarbonate (PC)
Enclosure: Polycarbonate (PC)
Mounting position
As required
Overvoltage category
III
Pollution degree
3
Product Category
SL signal towers
Radiation angle
360 °
Rated impulse withstand voltage (Uimp)
4000 V AC
Shock resistance
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Mechanical, According to IEC/EN 60068-2-27
Mechanical, According to IEC/EN 60068-2-27
Type
Strobe light module
Voltage type
AC
Climatic environmental conditions
Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
60 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Damp heat, constant, to IEC 60068-2-78
Electrical rating
Leakage current
0.003 A
Rated insulation voltage (Ui)
250 V
Rated operational voltage (Ue) at AC - min
230 V
Rated operational voltage (Ue) at AC - max
240 V
Rated operational voltage (Ue) at DC - min
0 V
Rated operational voltage (Ue) at DC - max
0 V
Technical data ETIM 9.0
Low-voltage industrial components (EG000017) / Optical module for signal tower (EC000232)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Command and alarm device / Optical module for signal tower (ecl@ss13-27-37-12-20 [AKF038019])
Function
Flash light
Repetition frequency settable
No
Colour
Blue
Outer diameter
43 mm
Operating voltage AC 50 Hz
230 - 240 V
Operating voltage AC 60 Hz
230 - 240 V
Operating voltage DC
0 - 0 V
Voltage type
AC
Power consumption
W
Lamp type
LED
Housing colour
Black
Degree of protection (IP)
IP66
Degree of protection (NEMA)
13
