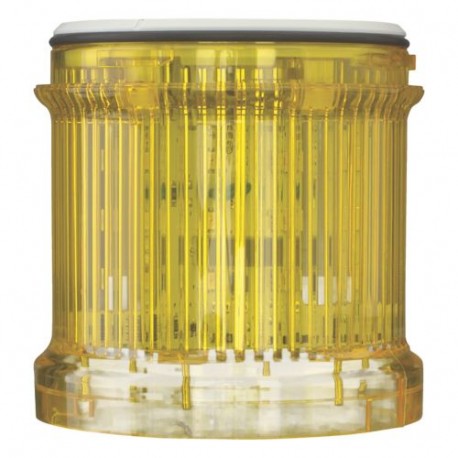

SL7-FL24-Y-HPM 171279 Y7-171279 EATON ELECTRIC LED multistrobe light, yellow 24V, H.P.
SL7-FL24-Y-HPM
171279
Y7-171279
EATON - MOELLER
1 Pcs.
Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller SL7-FL24-Y-HPM LED multistrobe light module offers high-performance optical signaling for demanding industrial applications and automated production lines. Modular strobe elements provide high-visibility warnings to enhance workplace safety and operational oversight.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Function (EF000030): Flash light
- Repetition frequency settable (EF018169): No
- Colour (EF000007): Yellow
- Outer diameter (EF000015): 73 mm
- Operating voltage AC 50 Hz (EF008206): 18 V
- Operating voltage AC 60 Hz (EF008207): 18 V
- Operating voltage DC (EF008208): 18 V
- Voltage type (EF000187): AC/DC
- Lamp type (EF002423): LED
- Housing colour (EF000136): Black
- Degree of protection (IP) (EF005474): IP66
- Degree of protection (NEMA) (EF011959): 13
More info
▲General specifications
Certified by UL for use in Canada
IEC/EN 60529
UL 508
CE
IEC/EN 60947-5-1
CSA-C22.2 No. 14-10
CSA-C22.2 No. 94-91
CSA Class No.: NKCR7
UL
UL Category Control No.: NKCR
UL report applies to both US and Canada
Features & Functions
Max. 10 (with base for mounting on both sides)
General
NEMA 13
Enclosure: Polycarbonate (PC)
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
