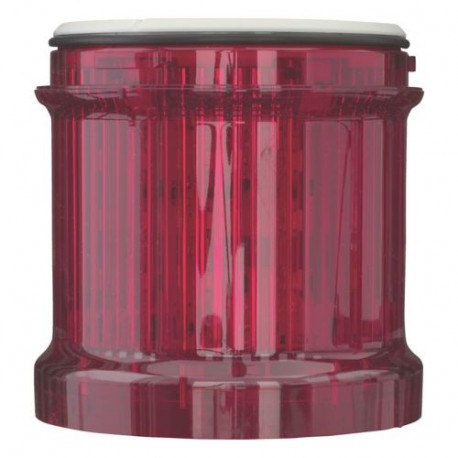

EATON - MOELLER SL7-FL24-R-HPM SL7-FL24-R-HPM 171277 Y7-171277 EATON ELECTRIC LED multistrobe light, red 24V, H.P. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SL7-FL24-R-HPM 171277 Y7-171277 EATON ELECTRIC LED multistrobe light, red 24V, H.P.

SL7-FL24-R-HPM

171277

Y7-171277

EATON - MOELLER

1 Pcs.

LED multistrobe light, red 24V, H.P. SL7-FL24-R-HPM Eaton Moeller® series SL7 LED multistrobe light, red 24V, H.P.

Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A high-performance red LED multi-strobe light module, cataloged as Eaton Moeller SL7-FL24-R-HPM, delivers intense visual warnings within modular tower systems. Such lights are integrated into industrial automation setups to maximize visibility during critical fault conditions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: SL7-FL24-R-HPM
  • Catalogue code: 171277
  • Catalogue title: SL7-FL24-R-HPM 171277 Y7-171277 EATON ELECTRIC LED multistrobe light, red 24V, H.P.
  • Product description: General specifications Product Name Eaton Moeller® series SL7 Multi-strobe light module Catalog Number 171277 Model Code SL7-FL24-R-HPM EAN 4015081678075 Product Length/Depth 73 mm Product Height 73 mm Product Width 73 m
  • Manufacturer summary: LED multistrobe light, red 24V, H.P. SL7-FL24-R-HPM Eaton Moeller® series SL7 LED multistrobe light, red 24V, H.P.

More info

▲

General specifications

Product Name
Eaton Moeller® series SL7 Multi-strobe light module
Catalog Number
171277
Model Code
SL7-FL24-R-HPM
EAN
4015081678075
Product Length/Depth
73 mm
Product Height
73 mm
Product Width
73 mm
Product Weight
0.089 kg
Certifications
CE
IEC/EN 60947-5-1
UL File No.: E29184
CSA Class No.: NKCR7
CSA-C22.2 No. 94-91
UL Category Control No.: NKCR
CSA-C22.2 No. 14-10
IEC/EN 60529
UL report applies to both US and Canada
Certified by UL for use in Canada
UL 508
UL

Features & Functions

Color
Red
Enclosure color
Black
Functions
Flash light
Light modules
High Performance LED
Number of modules
Max. 5 (with standard base)
Max. 10 (with base for mounting on both sides)

General

Connection to SmartWire-DT
No
Current consumption
0.26 - 0.265 A, at 24 V AC/DC
Degree of protection
NEMA 4
IP66
Flashing frequency
1 - 2.6 Hz
Lifespan, electrical
50,000 h
Light type
Multistrobe light
Material
Cap: Polycarbonate (PC)
Enclosure: Polycarbonate (PC)
Mounting position
As required
Overvoltage category
III
Pollution degree
3
Product Category
SL signal towers
Radiation angle
360 °
Rated impulse withstand voltage (Uimp)
4000 V AC
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Type
Voltage type
AC/DC

Climatic environmental conditions

Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
60 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Electrical rating

Leakage current
0.003 A
Rated insulation voltage (Ui)
250 V
Rated operational voltage (Ue) at AC - min
18 V
Rated operational voltage (Ue) at AC - max
26 V
Rated operational voltage (Ue) at DC - min
18 V
Rated operational voltage (Ue) at DC - max
30 V

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
