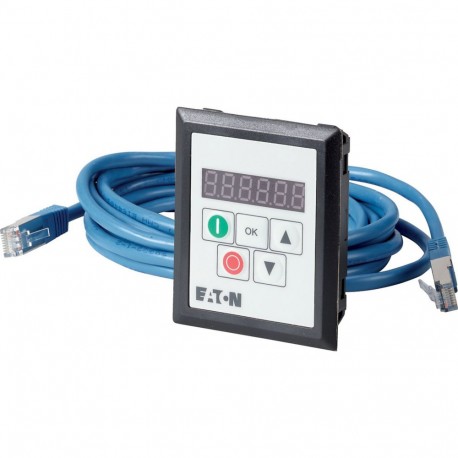

EATON - MOELLER DX-KEY-LED DX-KEY-LED 169132 EATON ELECTRIC LED keypad for variable frequency drives View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DX-KEY-LED 169132 EATON ELECTRIC LED keypad for variable frequency drives

DX-KEY-LED

169132

EATON - MOELLER

1 Pcs.

LED keypad for variable frequency drives Remote LED keypad for DC1 and DA1 variable frequency drives

Automation > Accessories/spare parts for frequency controller
Power XL Frequency Converters

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Delivery programme
Part group reference (e.g. DIL)
 DE1
DC1
DA1
Subrange
 HMI device
Description
 With 7-digital display assembly
Front IP54
With approx. 3 m-long, plug-in connection cable (RJ45, 8-pin)
Length
 m 3
For use with
 DE1, DE11, DC1, DA1
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification
Operating ambient temperature min.
 °C -10
Operating ambient temperature max.
 °C 50
IEC/EN 61439 design verification
10.2 Strength of materials and parts
10.2.2 Corrosion resistance
 Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
 Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
 Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
 Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
 Please enquire
10.2.5 Lifting
 Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
 Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
 Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
 Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
 Meets the product standard's requirements.
10.5 Protection against electric shock
 Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
 Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
 Is the panel builder's responsibility.
10.8 Connections for external conductors
 Is the panel builder's responsibility.
10.9 Insulation properties
10.9.2 Power-frequency electric strength
 Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
 Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
 Is the panel builder's responsibility.
10.10 Temperature rise
 The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
 Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
 Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
 The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
Low-voltage industrial components (EG000017) / Accessories for frequency controller (EC002025)
Electric engineering, automation, process control engineering / Electrical drive / Electrical drive (accessories) / Frequency controller (accessories) ([email protected] [ACN127008])
Type of accessory
 Control panel
Approvals
Product Standards UL 508C; CSA-C22.2 No. 14; IEC/EN61800-3; IEC/EN61800-5; CE marking
UL File No. E172143
UL Category Control No. NMMS, NMMS7
CSA File No. UL report applies to both US and Canada
North America Certification UL listed, certified by UL for use in Canada
Specially designed for North America No
Suitable for Branch circuits
Degree of Protection IEC: IP00
Dimensions
IL04012020Z Remote Keypad LED/OLED
>
>
>
>
>
>
>>

ETIM for 169132 Low-voltage industrial controls and switchgear (EC002025)
Feature Name Feature Value
Type of accessory/spare part (EF000215) Control panel
Accessory (EF013236) No
Spare part (EF013237) No
