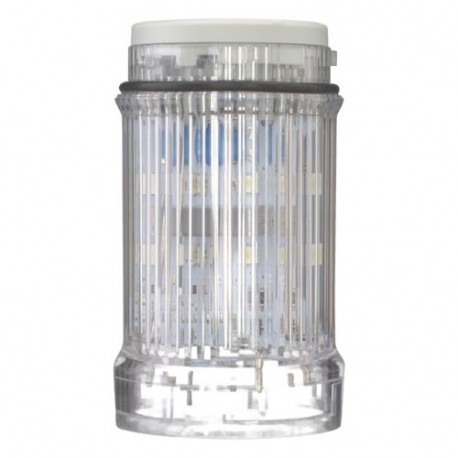

SL4-BL24-W 171340 Y7-171340 EATON ELECTRIC LED flashing light, white 24V
SL4-BL24-W
171340
Y7-171340
EATON - MOELLER
1 Pcs.
Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller SL4-BL24-W is an LED flashing light module engineered for modular signal towers on industrial control systems. This white optical component communicates operational statuses and alerts to personnel. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Function (EF000030): Blinker light
- Repetition frequency settable (EF018169): No
- Outer diameter (EF000015): 43 mm
- Operating voltage AC 50 Hz (EF008206): 24 V
- Operating voltage AC 60 Hz (EF008207): 24 V
- Operating voltage DC (EF008208): 24 V
- Voltage type (EF000187): AC/DC
- Lamp type (EF002423): LED
- Housing colour (EF000136): Black
- Degree of protection (IP) (EF005474): IP66
- Degree of protection (NEMA) (EF011959): 4X
More info
▲General specifications
UL report applies to both US and Canada
UL
UL Category Control No.: NKCR
UL File No.: E29184
Certified by UL for use in Canada
IEC/EN 60947-5-1
CSA-C22.2 No. 94-91
CSA Class No.: NKCR7
IEC/EN 60529
CE
CSA-C22.2 No. 14-10
Features & Functions
Max. 5 (with standard base)
General
NEMA 4X
Enclosure: Polycarbonate (PC)
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
