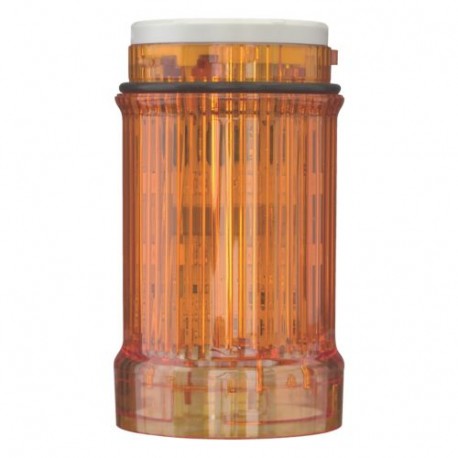

EATON - MOELLER SL4-BL120-A SL4-BL120-A 171348 Y7-171348 EATON ELECTRIC LED flashing light, orange 120V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SL4-BL120-A 171348 Y7-171348 EATON ELECTRIC LED flashing light, orange 120V

SL4-BL120-A

171348

Y7-171348

EATON - MOELLER

1 Pcs.

LED flashing light, orange 120V SL4-BL120-A Eaton Moeller® series SL4 Flashing light module; orange; LED;120 V Flashing light module, Color Orange, Product range: SL signal towers, Degree of Protection: IP66, Protection type UL: Type 4, 4X, 13, Rated operational voltage: Ue= 110/120 V AC, Type of light: Flashing light, Light elements: LED, Mounting position: As required, Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-1

Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series SL4 Flashing light module
Catalog Number
171348
Model Code
SL4-BL120-A
EAN
4015081678167
Product Length/Depth
43 mm
Product Height
75 mm
Product Width
43 mm
Product Weight
0.043 kg
Certifications
UL Category Control No.: NKCR
CSA-C22.2 No. 14-10
CE
UL 508
CSA-C22.2 No. 94-91
IEC/EN 60529
Certified by UL for use in Canada
UL report applies to both US and Canada
CSA Class No.: NKCR7
IEC/EN 60947-5-1
UL
UL File No.: E29184

Features & Functions

Color
Orange
Enclosure color
Black
Functions
Blinker light
Light modules
LED
Number of modules
Max. 10 (with base for mounting on both sides)
Max. 5 (with standard base)

General

Connection to SmartWire-DT
No
Current consumption
45 mA at 110/120 V AC
Degree of protection
IP66
NEMA 4
Flashing frequency
2 Hz
Lifespan, electrical
100,000 h
Light type
Flashing light
Material
Cap: Polycarbonate (PC)
Enclosure: Polycarbonate (PC)
Mounting position
As required
Overvoltage category
III
Pollution degree
3
Product Category
SL signal towers
Radiation angle
360 °
Rated impulse withstand voltage (Uimp)
4000 V AC
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Type
Flashing light module
Voltage type
AC

Climatic environmental conditions

Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
60 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Electrical rating

Leakage current
0.003 A
Rated insulation voltage (Ui)
250 V
Rated operational voltage (Ue) at AC - min
110 V
Rated operational voltage (Ue) at AC - max
120 V
Rated operational voltage (Ue) at DC - min
0 V
Rated operational voltage (Ue) at DC - max
0 V

ETIM for 171348 Low-voltage industrial controls and switchgear (EC000232)
Feature Name Feature Value
Function (EF000030) Blinker light
Repetition frequency settable (EF018169) No
Colour (EF000007) Orange
Outer diameter (EF000015) 43 mm
Operating voltage AC 50 Hz (EF008206) 110 V
Operating voltage AC 60 Hz (EF008207) 110 V
Operating voltage DC (EF008208) 0 V
Voltage type (EF000187) AC
Lamp type (EF002423) LED
Housing colour (EF000136) Black
Degree of protection (IP) (EF005474) IP66
Degree of protection (NEMA) (EF011959) 4
