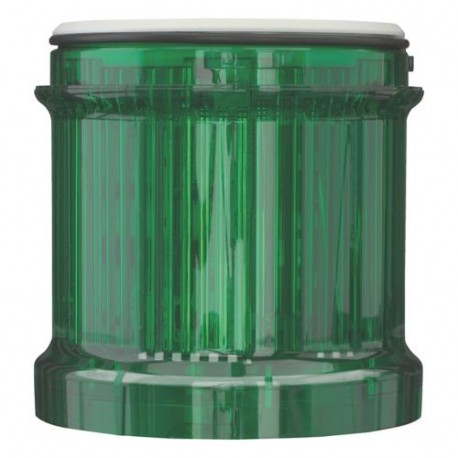

EATON - MOELLER SL7-BL24-G SL7-BL24-G 171440 Y7-171440 EATON ELECTRIC LED flashing light, green 24V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SL7-BL24-G 171440 Y7-171440 EATON ELECTRIC LED flashing light, green 24V

SL7-BL24-G

171440

Y7-171440

EATON - MOELLER

1 Pcs.

LED flashing light, green 24V SL7-BL24-G Eaton Moeller® series SL7 Flashing light module; green; LED;24 V Flashing light module, Color green, Product range: SL signal towers, Degree of Protection: IP66, Protection type UL: Type 4, 4X, 13, Rated operational voltage: Ue= 24 V AC/DC, Type of light: Flashing light, Light elements: LED, Mounting position: As required, Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-1

Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller SL7-BL24-G is an LED flashing light designed for deployment in industrial signaling towers and automation control panels. Devices of this type provide visual status indications, operational warnings, or fault alerts in machinery and manufacturing lines. Precise pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Function (EF000030): Blinker light
  • Repetition frequency settable (EF018169): No
  • Colour (EF000007): Green
  • Outer diameter (EF000015): 73 mm
  • Operating voltage AC 50 Hz (EF008206): 24 V
  • Operating voltage AC 60 Hz (EF008207): 24 V
  • Operating voltage DC (EF008208): 24 V
  • Voltage type (EF000187): AC/DC
  • Lamp type (EF002423): LED
  • Housing colour (EF000136): Black
  • Degree of protection (IP) (EF005474): IP66
  • Degree of protection (NEMA) (EF011959): 4X

More info

▲

General specifications

Product Name
Eaton Moeller® series SL7 Flashing light module
Catalog Number
171440
Model Code
SL7-BL24-G
EAN
4015081679539
Product Length/Depth
73 mm
Product Height
73 mm
Product Width
73 mm
Product Weight
0.08 kg
Certifications
CSA-C22.2 No. 14-10
IEC/EN 60529
CE
UL Category Control No.: NKCR
Certified by UL for use in Canada
CSA Class No.: NKCR7
CSA-C22.2 No. 94-91
UL 508
UL File No.: E29184
IEC/EN 60947-5-1
UL
UL report applies to both US and Canada

Features & Functions

Color
Green
Enclosure color
Black
Functions
Blinker light
Light modules
LED
Number of modules
Max. 5 (with standard base)
Max. 10 (with base for mounting on both sides)

General

Connection to SmartWire-DT
No
Current consumption
0.058 A, at 24 V AC/DC
Degree of protection
NEMA 4X
IP66
Flashing frequency
2 Hz
Lifespan, electrical
100,000 h
Light type
Flashing light
Material
Cap: Polycarbonate (PC)
Enclosure: Polycarbonate (PC)
Mounting position
As required
Overvoltage category
III
Pollution degree
3
Product Category
SL signal towers
Radiation angle
360 °
Rated impulse withstand voltage (Uimp)
4000 V AC
Shock resistance
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Mechanical, According to IEC/EN 60068-2-27
Type
Flashing light module
Voltage type
AC/DC

Climatic environmental conditions

Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
60 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Electrical rating

Leakage current
0.003 A
Rated insulation voltage (Ui)
250 V
Rated operational voltage (Ue) at AC - min
24 V
Rated operational voltage (Ue) at AC - max
24 V
Rated operational voltage (Ue) at DC - min
24 V
Rated operational voltage (Ue) at DC - max
24 V
