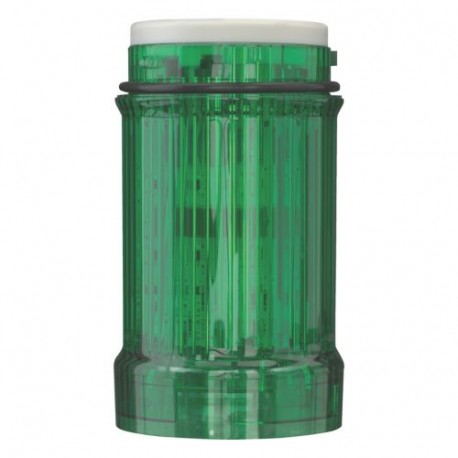

SL4-BL24-G 171338 Y7-171338 EATON ELECTRIC LED flashing light, green 24V
SL4-BL24-G
171338
Y7-171338
EATON - MOELLER
1 Pcs.
Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller SL4-BL24-G LED flashing light, green 24V functions as a modular optical blinker element for industrial signaling columns. These stack light modules provide clear visual cues to factory personnel regarding machine operation cycles and process states. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Function (EF000030): Blinker light
- Repetition frequency settable (EF018169): No
- Colour (EF000007): Green
- Outer diameter (EF000015): 43 mm
- Operating voltage AC 50 Hz (EF008206): 24 V
- Operating voltage AC 60 Hz (EF008207): 24 V
- Operating voltage DC (EF008208): 24 V
- Voltage type (EF000187): AC/DC
- Lamp type (EF002423): LED
- Housing colour (EF000136): Black
- Degree of protection (IP) (EF005474): IP66
- Degree of protection (NEMA) (EF011959): 4
More info
▲General specifications
CE
UL 508
UL Category Control No.: NKCR
CSA-C22.2 No. 94-91
CSA Class No.: NKCR7
IEC/EN 60529
IEC/EN 60947-5-1
UL
UL report applies to both US and Canada
CSA-C22.2 No. 14-10
UL File No.: E29184
Features & Functions
Max. 10 (with base for mounting on both sides)
General
IP66
Enclosure: Polycarbonate (PC)
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
