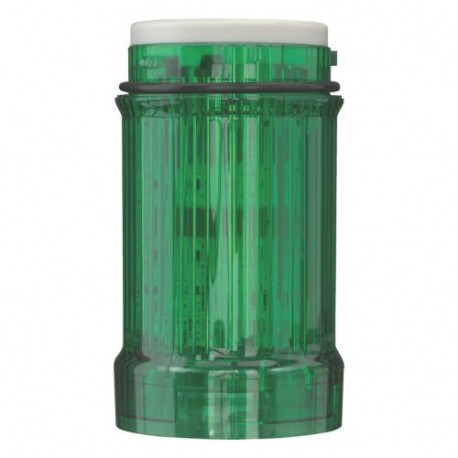

EATON - MOELLER SL4-BL230-G SL4-BL230-G 171350 Y7-171350 EATON ELECTRIC LED flashing light, green 230V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SL4-BL230-G 171350 Y7-171350 EATON ELECTRIC LED flashing light, green 230V

SL4-BL230-G

171350

Y7-171350

EATON - MOELLER

1 Pcs.

LED flashing light, green 230V SL4-BL230-G Eaton Moeller® series SL4 Flashing light module, green, LED, 230 V Flashing light module, Color green, Product range: SL signal towers, Degree of Protection: IP66, Protection type UL: Type 4, 4X, 13, Rated operational voltage: Ue= 230/240 V AC, Type of light: Flashing light, Light elements: LED, Mounting position: As required, Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-1

Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller SL4-BL230-G LED flashing light module delivers a green optical blinker signal for industrial machinery and switchboard assemblies. Stack light components such as this are integral for communicating normal running conditions or safe operational phases.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Function (EF000030): Blinker light
  • Repetition frequency settable (EF018169): No
  • Colour (EF000007): Green
  • Outer diameter (EF000015): 43 mm
  • Operating voltage AC 50 Hz (EF008206): 230 V
  • Operating voltage AC 60 Hz (EF008207): 230 V
  • Operating voltage DC (EF008208): 0 V
  • Voltage type (EF000187): AC
  • Lamp type (EF002423): LED
  • Housing colour (EF000136): Black
  • Degree of protection (IP) (EF005474): IP66
  • Degree of protection (NEMA) (EF011959): 4

More info

▲

General specifications

Product Name
Eaton Moeller® series SL4 Flashing light module
Catalog Number
171350
Model Code
SL4-BL230-G
EAN
4015081678846
Product Length/Depth
43 mm
Product Height
75 mm
Product Width
43 mm
Product Weight
0.043 kg
Certifications
CSA-C22.2 No. 94-91
UL
CE
UL report applies to both US and Canada
UL Category Control No.: NKCR
Certified by UL for use in Canada
UL File No.: E29184
IEC/EN 60529
CSA Class No.: NKCR7
CSA-C22.2 No. 14-10
IEC/EN 60947-5-1
UL 508

Features & Functions

Color
Green
Enclosure color
Black
Functions
Blinker light
Light modules
LED
Number of modules
Max. 5 (with standard base)
Max. 10 (with base for mounting on both sides)

General

Connection to SmartWire-DT
No
Current consumption
34 mA at 230/240 V AC
Degree of protection
NEMA 4
IP66
Flashing frequency
2 Hz
Lifespan, electrical
100,000 h
Light type
Flashing light
Material
Enclosure: Polycarbonate (PC)
Cap: Polycarbonate (PC)
Mounting position
As required
Overvoltage category
III
Pollution degree
3
Product Category
SL signal towers
Radiation angle
360 °
Rated impulse withstand voltage (Uimp)
4000 V AC
Shock resistance
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Mechanical, According to IEC/EN 60068-2-27
Type
Flashing light module
Voltage type
AC

Climatic environmental conditions

Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
60 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Electrical rating

Leakage current
0.003 A
Rated insulation voltage (Ui)
250 V
Rated operational voltage (Ue) at AC - min
230 V
Rated operational voltage (Ue) at AC - max
240 V
Rated operational voltage (Ue) at DC - min
0 V
Rated operational voltage (Ue) at DC - max
0 V
