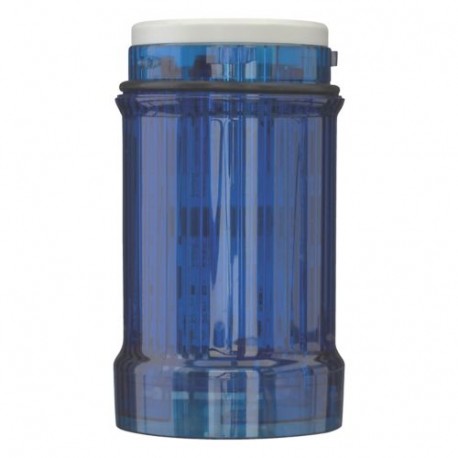

SL4-BL24-B 171337 Y7-171337 EATON ELECTRIC LED flashing light, blue 24V
SL4-BL24-B
171337
Y7-171337
EATON - MOELLER
1 Pcs.
Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller SL4-BL24-B is an LED flashing light module designed to provide distinct visual cues and localized warnings on industrial control systems. Signaling columns incorporate these modules to help maintain safe operating conditions by signaling specific machine states. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Function (EF000030): Blinker light
- Repetition frequency settable (EF018169): No
- Colour (EF000007): Blue
- Outer diameter (EF000015): 43 mm
- Operating voltage AC 50 Hz (EF008206): 24 V
- Operating voltage AC 60 Hz (EF008207): 24 V
- Operating voltage DC (EF008208): 24 V
- Voltage type (EF000187): AC/DC
- Lamp type (EF002423): LED
- Housing colour (EF000136): Black
- Degree of protection (IP) (EF005474): IP66
- Degree of protection (NEMA) (EF011959): 13
More info
▲General specifications
CSA Class No.: NKCR7
IEC/EN 60947-5-1
UL 508
Certified by UL for use in Canada
UL Category Control No.: NKCR
UL
IEC/EN 60529
CE
UL report applies to both US and Canada
CSA-C22.2 No. 14-10
CSA-C22.2 No. 94-91
Features & Functions
Max. 5 (with standard base)
General
IP66
Enclosure: Polycarbonate (PC)
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
