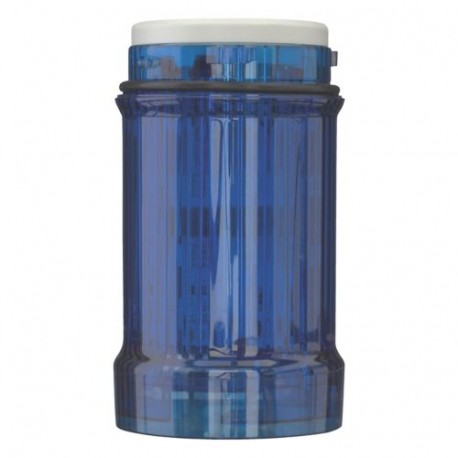

EATON - MOELLER SL4-BL230-B SL4-BL230-B 171349 Y7-171349 EATON ELECTRIC LED flashing light, blue 230V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SL4-BL230-B 171349 Y7-171349 EATON ELECTRIC LED flashing light, blue 230V

SL4-BL230-B

171349

Y7-171349

EATON - MOELLER

1 Pcs.

LED flashing light, blue 230V SL4-BL230-B Eaton Moeller® series SL4 Flashing light module; blue; LED;230 V Flashing light module, Color Blue, Product range: SL signal towers, Degree of Protection: IP66, Protection type UL: Type 4, 4X, 13, Rated operational voltage: Ue= 230/240 V AC, Type of light: Flashing light, Light elements: LED, Mounting position: As required, Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-1

Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

SL4-BL230-B 171349 Y7-171349 Eaton Electric LED flashing light, blue 230V acts as an optical warning and status indicator module designed for direct mounting on industrial control systems. Blue blinking modules are frequently applied to communicate specific auxiliary functions, material requests, or general supervisory alerts.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Function (EF000030): Blinker light
  • Repetition frequency settable (EF018169): No
  • Colour (EF000007): Blue
  • Outer diameter (EF000015): 43 mm
  • Operating voltage AC 50 Hz (EF008206): 230 V
  • Operating voltage AC 60 Hz (EF008207): 230 V
  • Operating voltage DC (EF008208): 0 V
  • Voltage type (EF000187): AC
  • Lamp type (EF002423): LED
  • Housing colour (EF000136): Black
  • Degree of protection (IP) (EF005474): IP66
  • Degree of protection (NEMA) (EF011959): 4X

More info

▲

General specifications

Product Name
Eaton Moeller® series SL4 Flashing light module
Catalog Number
171349
Model Code
SL4-BL230-B
EAN
4015081678839
Product Length/Depth
43 mm
Product Height
75 mm
Product Width
43 mm
Product Weight
0.043 kg
Certifications
CSA-C22.2 No. 94-91
CE
UL 508
UL report applies to both US and Canada
Certified by UL for use in Canada
UL
CSA-C22.2 No. 14-10
UL Category Control No.: NKCR
IEC/EN 60529
IEC/EN 60947-5-1
UL File No.: E29184
CSA Class No.: NKCR7

Features & Functions

Color
Blue
Enclosure color
Black
Functions
Blinker light
Light modules
LED
Number of modules
Max. 5 (with standard base)
Max. 10 (with base for mounting on both sides)

General

Connection to SmartWire-DT
No
Current consumption
34 mA at 230/240 V AC
Degree of protection
NEMA 4X
IP66
Flashing frequency
2 Hz
Lifespan, electrical
100,000 h
Light type
Flashing light
Material
Enclosure: Polycarbonate (PC)
Cap: Polycarbonate (PC)
Mounting position
As required
Overvoltage category
III
Pollution degree
3
Product Category
SL signal towers
Radiation angle
360 °
Rated impulse withstand voltage (Uimp)
4000 V AC
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Type
Flashing light module
Voltage type
AC

Climatic environmental conditions

Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
60 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Electrical rating

Leakage current
0.003 A
Rated insulation voltage (Ui)
250 V
Rated operational voltage (Ue) at AC - min
230 V
Rated operational voltage (Ue) at AC - max
240 V
Rated operational voltage (Ue) at DC - min
0 V
Rated operational voltage (Ue) at DC - max
0 V
