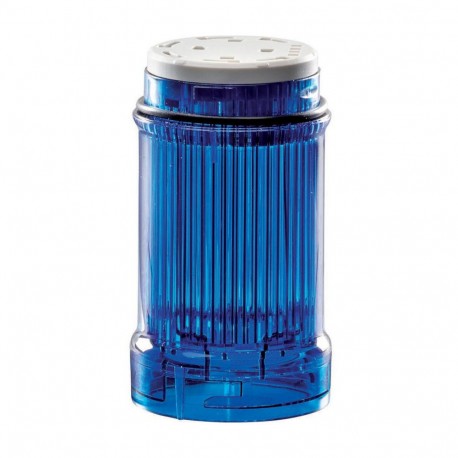

EATON - MOELLER SL4-BL120-B SL4-BL120-B 171343 Y7-171343 EATON ELECTRIC LED flashing light, blue 120V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SL4-BL120-B 171343 Y7-171343 EATON ELECTRIC LED flashing light, blue 120V

SL4-BL120-B

171343

Y7-171343

EATON - MOELLER

1 Pcs.

LED flashing light, blue 120V SL4-BL120-B Eaton Moeller® series SL4 Flashing light module; blue; LED;120 V Flashing light module, Color Blue, Product range: SL signal towers, Degree of Protection: IP66, Protection type UL: Type 4, 4X, 13, Rated operational voltage: Ue= 110/120 V AC, Type of light: Flashing light, Light elements: LED, Mounting position: As required, Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-1

Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller SL4-BL120-B LED flashing light module provides distinct blue optical indication within industrial automation setups and control systems. Signal tower blinker elements like this one are standard choices for indicating specific operational statuses or user interventions.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Function (EF000030): Blinker light
  • Repetition frequency settable (EF018169): No
  • Colour (EF000007): Blue
  • Outer diameter (EF000015): 43 mm
  • Operating voltage AC 50 Hz (EF008206): 110 V
  • Operating voltage AC 60 Hz (EF008207): 110 V
  • Operating voltage DC (EF008208): 0 V
  • Voltage type (EF000187): AC
  • Lamp type (EF002423): LED
  • Housing colour (EF000136): Black
  • Degree of protection (IP) (EF005474): IP66
  • Degree of protection (NEMA) (EF011959): 4

More info

▲

General specifications

Product Name
Eaton Moeller® series SL4 Flashing light module
Catalog Number
171343
Model Code
SL4-BL120-B
EAN
4015081678785
Product Length/Depth
43 mm
Product Height
75 mm
Product Width
43 mm
Product Weight
0.043 kg
Certifications
CSA Class No.: NKCR7
IEC/EN 60529
CSA-C22.2 No. 94-91
UL File No.: E29184
UL 508
UL report applies to both US and Canada
CSA-C22.2 No. 14-10
UL
Certified by UL for use in Canada
UL Category Control No.: NKCR
IEC/EN 60947-5-1
CE

Features & Functions

Color
Blue
Enclosure color
Black
Functions
Blinker light
Light modules
LED
Number of modules
Max. 10 (with base for mounting on both sides)
Max. 5 (with standard base)

General

Connection to SmartWire-DT
No
Current consumption
45 mA at 110/120 V AC
Degree of protection
IP66
NEMA 4
Flashing frequency
2 Hz
Lifespan, electrical
100,000 h
Light type
Flashing light
Material
Enclosure: Polycarbonate (PC)
Cap: Polycarbonate (PC)
Mounting position
As required
Overvoltage category
III
Pollution degree
3
Product Category
SL signal towers
Radiation angle
360 °
Rated impulse withstand voltage (Uimp)
4000 V AC
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Type
Flashing light module
Voltage type
AC

Climatic environmental conditions

Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
60 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Electrical rating

Leakage current
0.003 A
Rated insulation voltage (Ui)
250 V
Rated operational voltage (Ue) at AC - min
110 V
Rated operational voltage (Ue) at AC - max
120 V
Rated operational voltage (Ue) at DC - min
0 V
Rated operational voltage (Ue) at DC - max
0 V
