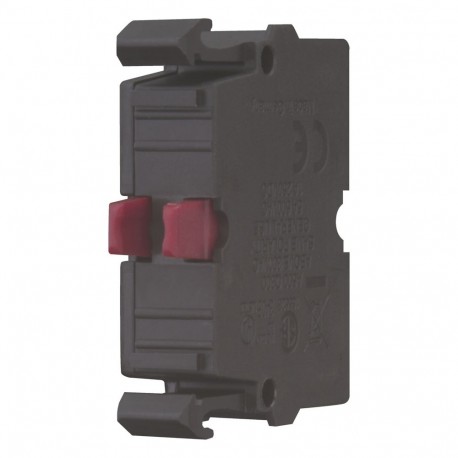

EATON - MOELLER M22-K01PV6 M22-K01PV6 150643 Y7-150643 EATON ELECTRIC Contact element 1N/C, front mount, screw connection, max. 6 for e.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-K01PV6 150643 Y7-150643 EATON ELECTRIC Contact element 1N/C, front mount, screw connection, max. 6 for e..

M22-K01PV6

150643

Y7-150643

EATON - MOELLER

20 Pcs.

Contact element 1N/C, front mount, screw connection, max. 6 for emergency stop M22-K01PV6 Eaton Moeller® series M22 Accessory Contact element, 1 N/C, Front fastening, Front fixing, Single contact Contact element, Connection technique: Screw terminals, Fixing: Front fixing, Description: only in connection with M22-PV… max. 6 contact elements M22-K01PV6, Contacts N/C = Normally closed: 1 NC, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.8, Maximum travel: mm 5.7, Minimum force for positive opening: N 15, Degree of Protection: IP20, Connection to SmartWire-DT: no, Connection type: Single contact, Standards: IEC 60947-5-1

Automation > Auxiliary contact block
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A front-mounted contact element allows operators to build customized control stations by snapping switching blocks directly behind actuator heads. The Eaton Moeller M22-K01PV6 component provides dependable switching performance for industrial control panels and operator consoles.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Number of contacts as normally closed contact (EF008255): 1
  • Number of fault-signal switches (EF007613): 0
  • Rated operation current Ie at AC-15, 230 V (EF001385): 6 A
  • Type of electric connection (EF003961): Screw connection
  • Model (EF000010): Clip-on
  • Mounting method (EF000003): Front fastening

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory Contact element
Catalog Number
150643
Model Code
M22-K01PV6
EAN
4015081469550
Product Length/Depth
38 mm
Product Height
32 mm
Product Width
10 mm
Product Weight
0.01 kg
Certifications
IEC 60947-5-1
Catalog Notes
Contacts with safety function, by positive opening to IEC/EN 60947-5-1
