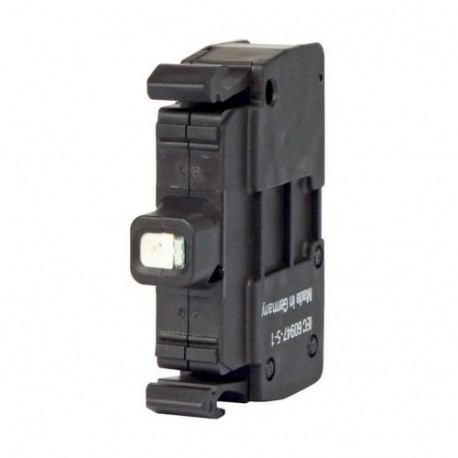

EATON - MOELLER M22-CLED-W M22-CLED-W 216569 Y7-216569 EATON ELECTRIC LED element, white, front mount, cage clamp View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-CLED-W 216569 Y7-216569 EATON ELECTRIC LED element, white, front mount, cage clamp

M22-CLED-W

216569

Y7-216569

EATON - MOELLER

20 Pcs.

LED element, white, front mount, cage clamp M22-CLED-W Eaton Moeller® series M22 LED element, white, front mount, cage clamp M22-CLED-W LED element, Fixing: Front fixing, Connection technique: Cage Clamp, Description: Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany, Rated operational voltage: Ue= 12 - 30 V AC/DC, 50/60 Hz V, Rated operational current: Ie= 8 - 15 mA, Power consumption: Pmax.= 0.26 W, at 24 V, Color: White, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1

Automation > Lamp holder block for control circuit devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller M22-CLED-W is an LED element, white, front mount, cage clamp utilized in industrial automation to illuminate pushbuttons, selector switches, and pilot devices on control panels. Such lighting elements ensure clear visual indication of system modes, warnings, or operational statuses across manufacturing machinery and electrical distribution boards.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Transformer integrated (EF001358): No
  • With integrated voltage decreasing resistor (EF001399): No
  • With light source (EF005905): Yes
  • With integrated diode (EF001400): Yes
  • Rated voltage Ue at AC 50 Hz (EF007029): 12 V
  • Rated voltage Ue at AC 60 Hz (EF007030): 12 V
  • Rated voltage Ue at DC (EF007031): 12 V
  • Voltage type for actuating (EF008242): AC/DC
  • Lamp type (EF002423): LED
  • Connection type auxiliary circuit (EF006820): Spring clamp connection
  • Colour light source (EF001402): White
  • Type of fastening (EF002442): Front fastening

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory LED
Catalog Number
216569
Model Code
M22-CLED-W
EAN
4015082165697
Product Length/Depth
39 mm
Product Height
39 mm
Product Width
10 mm
Product Weight
0.01 kg
Compliances
CE Marked
Certifications
IEC 60947-5
CSA Std. C22.2 No. 14-05
CSA Std. C22.2 No. 94-91
EN 60947-5
UL 508
VDE
CSA File No.: 012528
IEC/EN 60947-5
UL Category Control No.: NKCR
CSA
CSA-C22.2 No. 14-05
UL
CE
IEC 60947-5-1
UL File No.: E29184
CSA Class No.: 3211-03
CSA-C22.2 No. 94-91
Catalog Notes
Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
