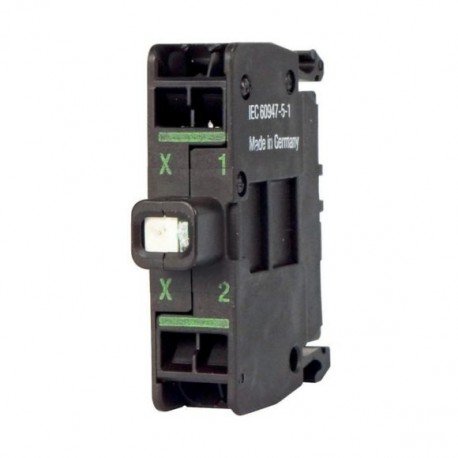

EATON - MOELLER M22-CLEDC230-W M22-CLEDC230-W 216578 Y7-216578 EATON ELECTRIC LED element, white, base fixing, cage clamp View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-CLEDC230-W 216578 Y7-216578 EATON ELECTRIC LED element, white, base fixing, cage clamp

M22-CLEDC230-W

216578

Y7-216578

EATON - MOELLER

20 Pcs.

LED element, white, base fixing, cage clamp M22-CLEDC230-W Eaton Moeller® series M22 LED element, white, base fixing, cage clamp M22-CLEDC230-W LED element, Fixing: Base fixing, Connection technique: Cage Clamp, Description: Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany, Rated operational voltage: Ue= 85 - 264 V AC, 50/60 Hz V, Rated operational current: Ie= 5 - 15 mA, Power consumption: Pmax.= 0.33 W, At 230 V, Color: White, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1

Automation > Lamp holder block for control circuit devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller M22-CLEDC230-W LED element provides dependable white illumination for base-fixing control units and operator interfaces in industrial panels. Parts of this category ensure clear visual communication of operational statuses. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Transformer integrated (EF001358): No
  • With integrated voltage decreasing resistor (EF001399): No
  • With light source (EF005905): Yes
  • With integrated diode (EF001400): Yes
  • Rated voltage Ue at AC 50 Hz (EF007029): 85 V
  • Rated voltage Ue at AC 60 Hz (EF007030): 85 V
  • Rated voltage Ue at DC (EF007031): 0 V
  • Voltage type for actuating (EF008242): AC
  • Lamp type (EF002423): LED
  • Connection type auxiliary circuit (EF006820): Spring clamp connection
  • Colour light source (EF001402): White
  • Type of fastening (EF002442): Floor fastening

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory LED
Catalog Number
216578
Model Code
M22-CLEDC230-W
EAN
4015082165789
Product Length/Depth
39 mm
Product Height
39 mm
Product Width
10 mm
Product Weight
0.01 kg
Compliances
CE Marked
Certifications
CSA Std. C22.2 No. 14-05
UL 508
EN 60947
IEC 60947
CSA Std. C22.2 No. 94-91
VDE
CSA File No.: 012528
CSA-C22.2 No. 14-05
UL File No.: E29184
IEC 60947-5-1
CE
CSA-C22.2 No. 94-91
CSA Class No.: 3211-03
IEC/EN 60947-5
UL
CSA
UL Category Control No.: NKCR
Catalog Notes
Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany
