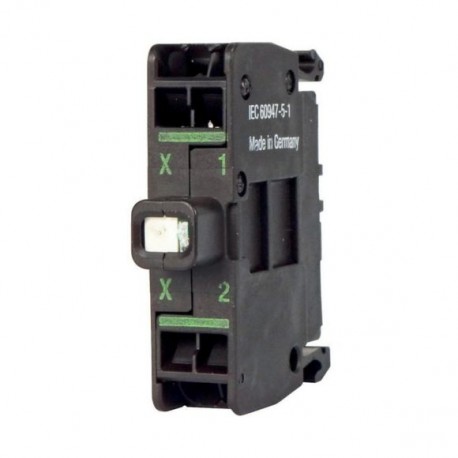

EATON - MOELLER M22-CLEDC-W M22-CLEDC-W 216572 Y7-216572 EATON ELECTRIC LED element, white, base fixing, cage clamp View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-CLEDC-W 216572 Y7-216572 EATON ELECTRIC LED element, white, base fixing, cage clamp

M22-CLEDC-W

216572

Y7-216572

EATON - MOELLER

20 Pcs.

LED element, white, base fixing, cage clamp M22-CLEDC-W Eaton Moeller® series M22 LED element, white, base fixing, cage clamp M22-CLEDC-W LED element, Fixing: Base fixing, Connection technique: Cage Clamp, Description: Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany, Rated operational voltage: Ue= 12 - 30 V AC/DC, 50/60 Hz V, Rated operational current: Ie= 8 - 15 mA, Power consumption: Pmax.= 0.26 W, at 24 V, Color: White, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1

Automation > Lamp holder block for control circuit devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller LED element, white, base fixing, cage clamp (part number M22-CLEDC-W) serves as an internal lighting component for modular control devices mounted inside electrical enclosures. Technicians rely on these elements to illuminate pushbuttons and pilot devices, ensuring clear visibility of control states across manufacturing systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Transformer integrated: No
  • With integrated voltage decreasing resistor: No
  • With light source: Yes
  • With integrated diode: Yes
  • Rated voltage Ue at AC 50 Hz: 12 V
  • Rated voltage Ue at AC 60 Hz: 12 V
  • Rated voltage Ue at DC: 12 V
  • Voltage type for actuating: AC/DC
  • Lamp type: LED
  • Connection type auxiliary circuit: Spring clamp connection
  • Colour light source: White
  • Type of fastening: Floor fastening

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory LED
Catalog Number
216572
Model Code
M22-CLEDC-W
EAN
4015082165727
Product Length/Depth
39 mm
Product Height
39 mm
Product Width
10 mm
Product Weight
0.01 kg
Compliances
CE Marked
Certifications
CSA Std. C22.2 No. 94-91
EN 60947-5
CSA Std. C22.2 No. 14-05
UL 508
IEC 60947-5
VDE
CSA Class No.: 3211-03
IEC 60947-5-1
CE
CSA File No.: 012528
UL Category Control No.: NKCR
IEC/EN 60947-5
CSA-C22.2 No. 14-05
UL
CSA-C22.2 No. 94-91
UL File No.: E29184
CSA
Catalog Notes
Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany
