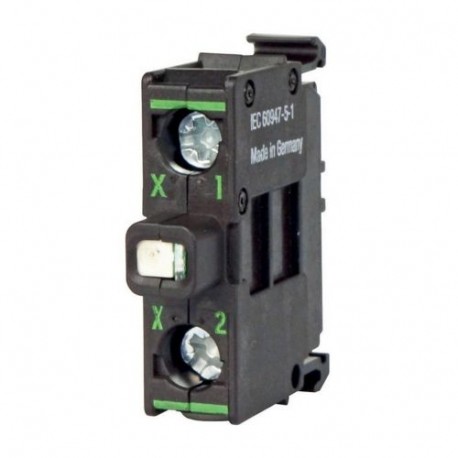

M22-LEDC-W 216560 Y7-216560 EATON ELECTRIC LED element, white, base fixing, 12-30VAC/DC
M22-LEDC-W
216560
Y7-216560
EATON - MOELLER
1 Pcs.
Automation > Lamp holder block for control circuit devices
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller M22-LEDC-W LED element provides reliable illumination for control and signaling devices in industrial panels. Panel builders use such components behind pushbuttons and pilot lights to clearly indicate machine statuses and operational modes across various control circuits.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Transformer integrated (EF001358): No
- With integrated voltage decreasing resistor (EF001399): No
- With light source (EF005905): Yes
- With integrated diode (EF001400): Yes
- Rated voltage Ue at AC 50 Hz (EF007029): 12 V
- Rated voltage Ue at AC 60 Hz (EF007030): 12 V
- Rated voltage Ue at DC (EF007031): 12 V
- Voltage type for actuating (EF008242): AC/DC
- Lamp type (EF002423): LED
- Connection type auxiliary circuit (EF006820): Screw connection
- Colour light source (EF001402): White
- Type of fastening (EF002442): Floor fastening
More info
▲General specifications
UL 508
EN 60947-5
CSA Std. C22.2 No. 14-05
CSA Std. C22.2 No. 94-91
VDE
CSA-C22.2 No. 14-05
IEC 60947-5-1
CSA-C22.2 No. 94-91
UL File No.: E29184
CE
CSA Class No.: 3211-03
UL Category Control No.: NKCR
CSA File No.: 012528
IEC/EN 60947-5
CSA
UL
Features & Functions
Light source
General
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
