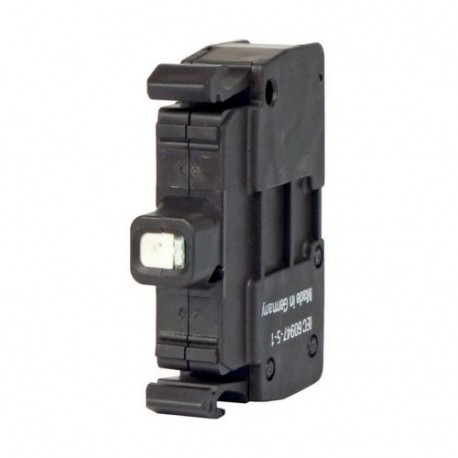

EATON - MOELLER M22-CLED-R M22-CLED-R 216570 Y7-216570 EATON ELECTRIC LED element, red, front mount, cage clamp View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-CLED-R 216570 Y7-216570 EATON ELECTRIC LED element, red, front mount, cage clamp

M22-CLED-R

216570

Y7-216570

EATON - MOELLER

20 Pcs.

LED element, red, front mount, cage clamp M22-CLED-R Eaton Moeller® series M22 LED element, red, front mount, cage clamp M22-CLED-R LED element, Fixing: Front fixing, Connection technique: Cage Clamp, Description: Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany, Rated operational voltage: Ue= 12 - 30 V AC/DC, 50/60 Hz V, Rated operational current: Ie= 8 - 15 mA, Power consumption: Pmax.= 0.26 W, at 24 V, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1

Automation > Lamp holder block for control circuit devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller LED element provides reliable front-mounted illumination for pushbuttons and pilot devices within machine control panels. These modular units snap securely behind control operators to deliver consistent visual feedback in automated industrial processes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Transformer integrated (EF001358): No
  • With integrated voltage decreasing resistor (EF001399): No
  • With light source (EF005905): Yes
  • With integrated diode (EF001400): Yes
  • Rated voltage Ue at AC 50 Hz (EF007029): 12 V
  • Rated voltage Ue at AC 60 Hz (EF007030): 12 V
  • Rated voltage Ue at DC (EF007031): 12 V
  • Voltage type for actuating (EF008242): AC/DC
  • Lamp type (EF002423): LED
  • Connection type auxiliary circuit (EF006820): Spring clamp connection
  • Colour light source (EF001402): Red
  • Type of fastening (EF002442): Front fastening

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory LED
Catalog Number
216570
Model Code
M22-CLED-R
EAN
4015082165703
Product Length/Depth
39 mm
Product Height
39 mm
Product Width
10 mm
Product Weight
0.01 kg
Compliances
CE Marked
Certifications
CSA Std. C22.2 No. 14-05
CSA Std. C22.2 No. 94-91
IEC 60947-5
UL 508
EN 60947-5
VDE
CE
IEC/EN 60947-5
CSA
CSA-C22.2 No. 14-05
UL
CSA File No.: 012528
CSA Class No.: 3211-03
CSA-C22.2 No. 94-91
IEC 60947-5-1
UL File No.: E29184
UL Category Control No.: NKCR
Catalog Notes
Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany
