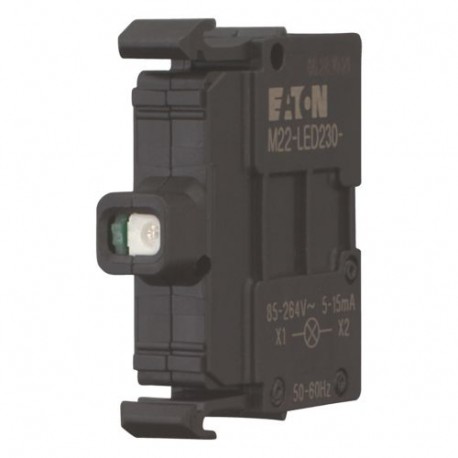

M22-LED-R 216558 Y7-216558 EATON ELECTRIC LED element, red, front mount, 12-30VAC/DC
M22-LED-R
216558
Y7-216558
EATON - MOELLER
1 Pcs.
LED element, red, front mount, 12-30VAC/DC
M22-LED-R
Eaton Moeller® series M22 LED element, red, front mount, 12-30VAC/DC
LED element, Fixing: Front fixing, Connection technique: Screw terminals, Rated operational voltage: Ue= 12 - 30 V AC/DC, 50/60 Hz V, Rated operational current: Ie= 8 - 15 mA, Power consumption: Pmax.= 0.26 W, at 24 V, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1
Automation > Lamp holder block for control circuit devices
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
| Product Name | Eaton Moeller® series M22 Accessory LED |
| Catalog Number | 216558 |
| Model Code | M22-LED-R |
| EAN | 4015082165581 |
| Product Length/Depth | 38 mm |
| Product Height | 10 mm |
| Product Width | 37 mm |
| Product Weight | 0.011 kg |
| Certifications | CE UL File No.: E29184 CSA IEC 60947-5-1 UL 508 CSA-C22.2 No. 14-05 IEC/EN 60947-5 UL Category Control No.: NKCR CSA File No.: 012528 UL CSA-C22.2 No. 94-91 CSA Class No.: 3211-03 |
Features & Functions
| Fitted with: | Diode Light source |
| Light color | Red |
General information
| Degree of protection | IP20 |
| Lifespan, electrical | 100,000 h (at 25°C, according to EN60064) |
| Operating torque | 0.8 Nm |
| Overvoltage category | III |
| Pollution degree | 3 |
| Rated impulse withstand voltage (Uimp) | 6000 V AC |
| Voltage type | AC/DC |
Ambient conditions, mechanical
| Mounting position | As required |
| Shock resistance | Mechanical, According to IEC/EN 60068-2-27 30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms |
Climatic environmental conditions
| Ambient operating temperature - min | -25 °C |
| Ambient operating temperature - max | 70 °C |
| Ambient storage temperature - min | 40 °C |
| Ambient storage temperature - max | 80 °C |
| Climatic proofing | Damp heat, constant, to IEC 60068-2-78 Damp heat, cyclic, to IEC 60068-2-30 |
Terminal capacities
| Terminal capacity (solid) | 0.75 - 2.5 mm² |
| Terminal capacity (stranded) | 0.5 - 2.5 mm² |
Electrical rating
| Power consumption | Max. 0.26 W |
| Rated insulation voltage (Ui) | 500 V |
| Rated operational current (Ie) - min | 5 mA |
| Rated operational current (Ie) - max | 14 mA |
| Rated operational voltage (Ue) at AC - max | 30 V |
| Rated operational voltage (Ue) at AC - min | 12 V |
| Rated operational voltage (Ue) at DC - max | 30 V |
| Rated operational voltage (Ue) at DC - min | 12 V |
Communication
| Connection to SmartWire-DT | No |
| Connection type | Front fixing |
Contacts
| Force for positive opening - min | 0 N |
Design verification
| Equipment heat dissipation, current-dependent Pvid | 0 W |
| Heat dissipation capacity Pdiss | 0 W |
| Heat dissipation per pole, current-dependent Pvid | 0 W |
| Rated operational current for specified heat dissipation (In) | 0 A |
| Static heat dissipation, non-current-dependent Pvs | 0.45 W |
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | Meets the product standard's requirements. |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| 10.10 Temperature rise | The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
| Feature Name | Feature Value |
|---|---|
| Transformer integrated (EF001358) | No |
| With integrated voltage decreasing resistor (EF001399) | No |
| With light source (EF005905) | Yes |
| With integrated diode (EF001400) | Yes |
| Lamp holder (EF000048) | None |
| Rated voltage Ue at AC 50 Hz (EF007029) | 12 V |
| Rated voltage Ue at AC 60 Hz (EF007030) | 12 V |
| Rated voltage Ue at DC (EF007031) | 12 V |
| Voltage type for actuating (EF008242) | AC/DC |
| Lamp type (EF002423) | LED |
| Connection type auxiliary circuit (EF006820) | Screw connection |
| Colour light source (EF001402) | Red |
| Type of fastening (EF002442) | Front fastening |
