View larger
Images are for illustrative purposes only. Please refer to data sheet for details

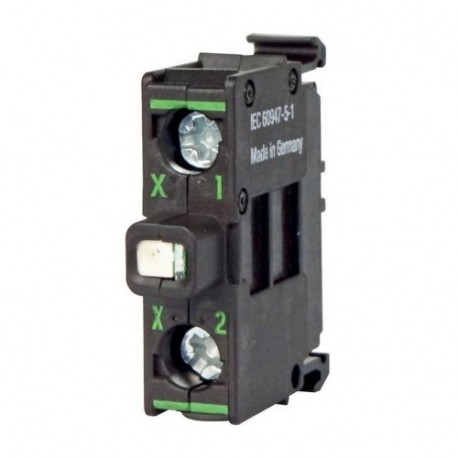

M22-LEDC230-R 216567 Y7-216567 EATON ELECTRIC LED element, red, base fixing, 85-264VAC
M22-LEDC230-R
216567
Y7-216567
EATON - MOELLER
20 Pcs.
LED element, red, base fixing, 85-264VAC
M22-LEDC230-R
Eaton Moeller® series M22 LED element, red, base fixing, 85-264VAC
LED element, Fixing: Base fixing, Connection technique: Screw terminals, Rated operational voltage: Ue= 85 - 264 V AC, 50/60 Hz V, Rated operational current: Ie= 5 - 15 mA, Power consumption: Pmax.= 0.33 W, At 230 V, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1
Automation > Lamp holder block for control circuit devices
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series M22 Accessory LED
Catalog Number
216567
Model Code
M22-LEDC230-R
EAN
4015082165673
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
37 mm
Product Weight
0.011 kg
Compliances
CE Marked
Certifications
IEC 60947-5
CSA Std. C22.2 No. 94-91
CSA Std. C22.2 No. 14-05
UL 508
EN 60947-5
VDE
IEC/EN 60947-5
CSA File No.: 012528
IEC 60947-5-1
UL
CSA
CSA Class No.: 3211-03
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
UL File No.: E29184
CE
UL Category Control No.: NKCR
CSA Std. C22.2 No. 94-91
CSA Std. C22.2 No. 14-05
UL 508
EN 60947-5
VDE
IEC/EN 60947-5
CSA File No.: 012528
IEC 60947-5-1
UL
CSA
CSA Class No.: 3211-03
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
UL File No.: E29184
CE
UL Category Control No.: NKCR
| Feature Name | Feature Value |
|---|---|
| Transformer integrated (EF001358) | No |
| With integrated voltage decreasing resistor (EF001399) | No |
| With light source (EF005905) | Yes |
| With integrated diode (EF001400) | Yes |
| Lamp holder (EF000048) | None |
| Rated voltage Ue at AC 50 Hz (EF007029) | 85 V |
| Rated voltage Ue at AC 60 Hz (EF007030) | 85 V |
| Rated voltage Ue at DC (EF007031) | 0 V |
| Voltage type for actuating (EF008242) | AC |
| Lamp type (EF002423) | LED |
| Connection type auxiliary circuit (EF006820) | Screw connection |
| Colour light source (EF001402) | Red |
| Type of fastening (EF002442) | Floor fastening |
