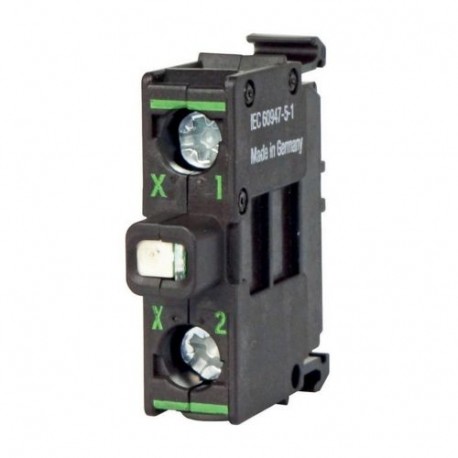

M22-LEDC-R 216561 Y7-216561 EATON ELECTRIC LED element, red, base fixing, 12-30VAC/DC
M22-LEDC-R
216561
Y7-216561
EATON - MOELLER
1 Pcs.
Automation > Lamp holder block for control circuit devices
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A LED element provides efficient built-in lighting for pushbuttons and signaling devices in industrial control panels, ensuring distinct operational feedback in automated machinery. The Eaton Moeller M22-LEDC-R unit features red illumination configured for base fixing arrangements. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Transformer integrated (EF001358): No
- With integrated voltage decreasing resistor (EF001399): No
- With light source (EF005905): Yes
- With integrated diode (EF001400): Yes
- Rated voltage Ue at AC 50 Hz (EF007029): 12 V
- Rated voltage Ue at AC 60 Hz (EF007030): 12 V
- Rated voltage Ue at DC (EF007031): 12 V
- Voltage type for actuating (EF008242): AC/DC
- Lamp type (EF002423): LED
- Connection type auxiliary circuit (EF006820): Screw connection
- Colour light source (EF001402): Red
- Type of fastening (EF002442): Floor fastening
More info
▲General specifications
UL 508
CSA Std. C22.2 No. 14-05
CSA Std. C22.2 No. 94-91
IEC 60947-5
VDE
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
CSA File No.: 012528
CSA
CSA Class No.: 3211-03
IEC/EN 60947-5
UL
CE
IEC 60947-5-1
UL File No.: E29184
UL Category Control No.: NKCR
Features & Functions
Diode
General
Ambient conditions, mechanical
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
