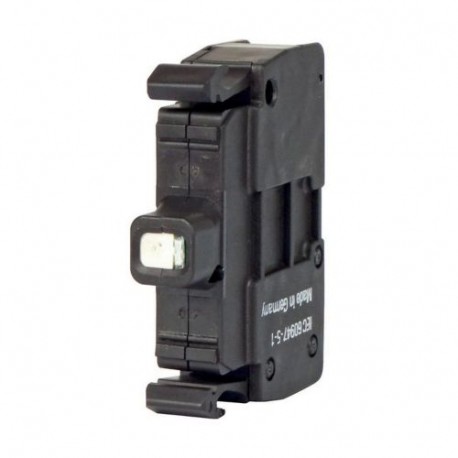

EATON - MOELLER M22-CLED230-G M22-CLED230-G 216577 Y7-216577 EATON ELECTRIC LED element, green, front mount, cage clamp View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-CLED230-G 216577 Y7-216577 EATON ELECTRIC LED element, green, front mount, cage clamp

M22-CLED230-G

216577

Y7-216577

EATON - MOELLER

20 Pcs.

LED element, green, front mount, cage clamp M22-CLED230-G Eaton Moeller® series M22 LED element, green, front mount, cage clamp M22-CLED230-G LED element, Fixing: Front fixing, Connection technique: Cage Clamp, Description: Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany, Rated operational voltage: Ue= 85 - 264 V AC, 50/60 Hz V, Rated operational current: Ie= 5 - 15 mA, Power consumption: Pmax.= 0.33 W, At 230 V, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1

Automation > Lamp holder block for control circuit devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An M22-CLED230-G Eaton Moeller LED element provides high-visibility green illumination for front-mounted control and signaling components. These modules snap directly into industrial pushbuttons to indicate system readiness or operational status. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Transformer integrated (EF001358): false
  • With integrated voltage decreasing resistor (EF001399): false
  • With light source (EF005905): true
  • With integrated diode (EF001400): true
  • Rated voltage Ue at AC 50 Hz (EF007029): 85 V
  • Rated voltage Ue at AC 60 Hz (EF007030): 85 V
  • Rated voltage Ue at DC (EF007031): 0 V
  • Voltage type for actuating (EF008242): AC
  • Lamp type (EF002423): LED
  • Connection type auxiliary circuit (EF006820): Spring clamp connection
  • Colour light source (EF001402): Green
  • Type of fastening (EF002442): Front fastening

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory LED
Catalog Number
216577
Model Code
M22-CLED230-G
EAN
4015082165772
Product Length/Depth
39 mm
Product Height
39 mm
Product Width
10 mm
Product Weight
0.01 kg
Compliances
CE Marked
Certifications
UL 508
CSA Std. C22.2 No. 94-91
IEC 60947-5
CSA Std. C22.2 No. 14-05
EN 60947-5
VDE
CSA
CSA-C22.2 No. 94-91
CSA-C22.2 No. 14-05
IEC 60947-5-1
UL
CE
CSA Class No.: 3211-03
CSA File No.: 012528
UL File No.: E29184
IEC/EN 60947-5
UL Category Control No.: NKCR
Catalog Notes
Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany
