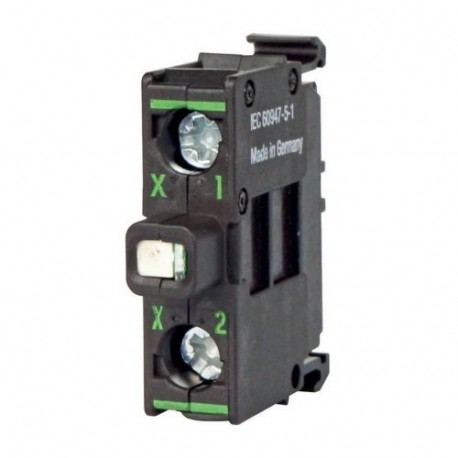

EATON - MOELLER M22-LEDC230-G M22-LEDC230-G 216568 Y7-216568 EATON ELECTRIC LED element, green, base fixing, 85-264VAC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-LEDC230-G 216568 Y7-216568 EATON ELECTRIC LED element, green, base fixing, 85-264VAC

M22-LEDC230-G

216568

Y7-216568

EATON - MOELLER

20 Pcs.

LED element, green, base fixing, 85-264VAC M22-LEDC230-G Eaton Moeller® series M22 LED element, green, base fixing, 85-264VAC LED element, Fixing: Base fixing, Connection technique: Screw terminals, Rated operational voltage: Ue= 85 - 264 V AC, 50/60 Hz V, Rated operational current: Ie= 5 - 15 mA, Power consumption: Pmax.= 0.33 W, At 230 V, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1

Automation > Lamp holder block for control circuit devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller LED element provides steady illumination for command and signaling devices, helping operators monitor machinery states efficiently across industrial applications. These base-fixing lighting units integrate into control panels to ensure high visibility and reliable operational status communication.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Transformer integrated (EF001358): false
  • With integrated voltage decreasing resistor (EF001399): false
  • With light source (EF005905): true
  • With integrated diode (EF001400): true
  • Rated voltage Ue at AC 50 Hz (EF007029): 85 V
  • Rated voltage Ue at AC 60 Hz (EF007030): 85 V
  • Rated voltage Ue at DC (EF007031): 0 V
  • Voltage type for actuating (EF008242): AC
  • Lamp type (EF002423): LED
  • Connection type auxiliary circuit (EF006820): Screw connection
  • Colour light source (EF001402): Green
  • Type of fastening (EF002442): Floor fastening

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory LED
Catalog Number
216568
Model Code
M22-LEDC230-G
EAN
4015082165680
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
37 mm
Product Weight
0.011 kg
Compliances
CE Marked
Certifications
IEC 60947-5
UL 508
CSA Std. C22.2 No. 14-05
CSA Std. C22.2 No. 94-91
EN 60947-5
VDE
UL File No.: E29184
CE
CSA-C22.2 No. 94-91
IEC/EN 60947-5
CSA-C22.2 No. 14-05
CSA File No.: 012528
UL Category Control No.: NKCR
CSA
CSA Class No.: 3211-03
UL
IEC 60947-5-1
