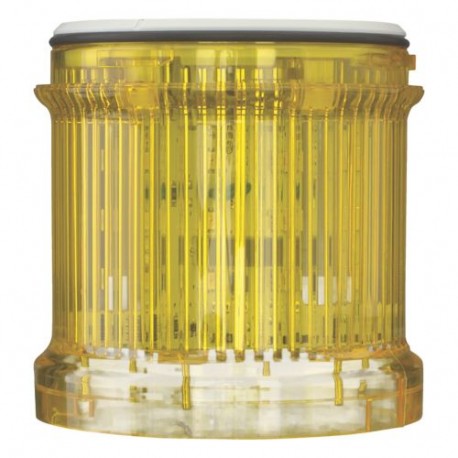

EATON - MOELLER SL7-L24-Y-HP SL7-L24-Y-HP 171431 Y7-171431 EATON ELECTRIC LED continuously light , yellow 24V, H.P. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SL7-L24-Y-HP 171431 Y7-171431 EATON ELECTRIC LED continuously light , yellow 24V, H.P.

SL7-L24-Y-HP

171431

Y7-171431

EATON - MOELLER

1 Pcs.

LED continuously light , yellow 24V, H.P. SL7-L24-Y-HP Eaton Moeller® series SL7 Continuous light module, yellow, high power LED, 24 V Continuous light module, Color yellow, High-performance LED for maximum signaling effect, Product range: SL signal towers, Degree of Protection: IP66, Protection type UL: Type 4, 4X, 13, Rated operational voltage: Ue= 24 V AC/DC, Type of light: Continuous light, Light elements: High Performance LED, Mounting position: As required, Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-1

Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller SL7-L24-Y-HP LED continuously light module provides steady, high-output optical signaling for industrial automation equipment and control stations. High-performance steady elements mount onto signal towers to communicate reliable running conditions to machine operators.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Function (EF000030): Continuous light
  • Repetition frequency settable (EF018169): No
  • Colour (EF000007): Yellow
  • Outer diameter (EF000015): 73 mm
  • Operating voltage AC 50 Hz (EF008206): 18 V
  • Operating voltage AC 60 Hz (EF008207): 18 V
  • Operating voltage DC (EF008208): 18 V
  • Voltage type (EF000187): AC/DC
  • Lamp type (EF002423): LED
  • Housing colour (EF000136): Black
  • Degree of protection (IP) (EF005474): IP66
  • Degree of protection (NEMA) (EF011959): 4X

More info

▲

General specifications

Product Name
Eaton Moeller® series SL7 Continuous light module
Catalog Number
171431
Model Code
SL7-L24-Y-HP
EAN
4015081677634
Product Length/Depth
73 mm
Product Height
73 mm
Product Width
73 mm
Product Weight
0.088 kg
Certifications
CE
UL report applies to both US and Canada
CSA Class No.: NKCR7
UL
UL 508
Certified by UL for use in Canada
CSA-C22.2 No. 94-91
IEC/EN 60947-5-1
UL File No.: E29184
CSA-C22.2 No. 14-10
UL Category Control No.: NKCR
IEC/EN 60529

Features & Functions

Color
Yellow
Enclosure color
Black
Functions
Continuous light
Light modules
High Performance LED
Number of modules
Max. 10 (with base for mounting on both sides)
Max. 5 (with standard base)

General

Connection to SmartWire-DT
No
Current consumption
50 mA at 24 V AC/DC
Degree of protection
IP66
NEMA 4X
Lifespan, electrical
50,000 h
Light type
Continuous light
Material
Cap: Polycarbonate (PC)
Enclosure: Polycarbonate (PC)
Mounting position
As required
Overvoltage category
III
Pollution degree
3
Product Category
SL signal towers
Radiation angle
360 °
Rated impulse withstand voltage (Uimp)
4000 V AC
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Type
Voltage type
AC/DC

Climatic environmental conditions

Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
60 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Electrical rating

Leakage current
0.003 A
Rated insulation voltage (Ui)
250 V
Rated operational voltage (Ue) at AC - min
18 V
Rated operational voltage (Ue) at AC - max
26 V
Rated operational voltage (Ue) at DC - min
18 V
Rated operational voltage (Ue) at DC - max
30 V
